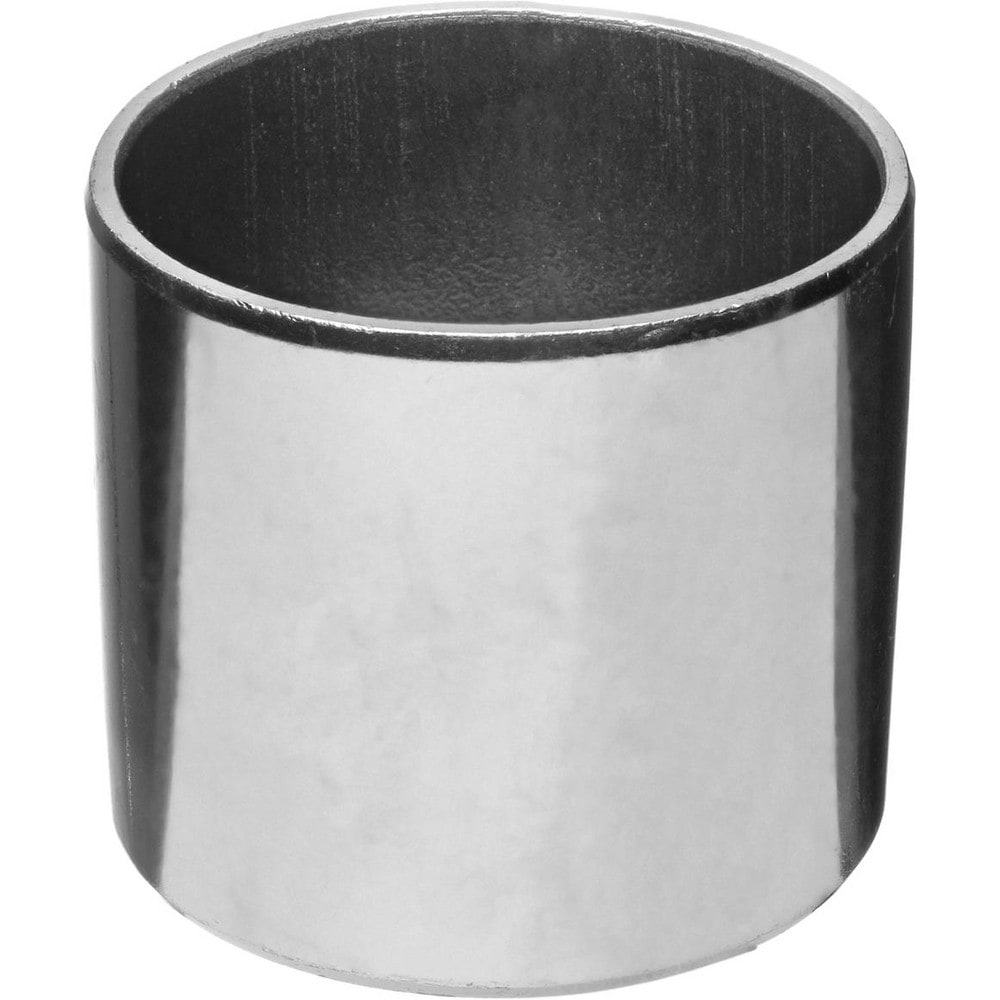

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 2-1/16; Outside Diameter (Decimal Inch - 4 Decimals): 2.0625; Inside Diameter (Inch): 1-7/8; Inside Diameter (Decimal Inch): 1.8750
Item #: 77006641
Brand: USA Industrials
Model #: ZUSAB-PB-936
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 2-1/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 2.0625 |
| Inside Diameter (Inch) | 1-7/8 |
| Inside Diameter (Decimal Inch) | 1.8750 |
| Material | Steel |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (Decimal Inch) | 1.8750 |
| Static Load Capacity | 682801.32 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 2.0630 |
| Housing Bore Limits Mininum | 2.0620 |
| Inside Diameter (mm) | 47.6300 |
| Overall Length (mm) | 47.63 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
