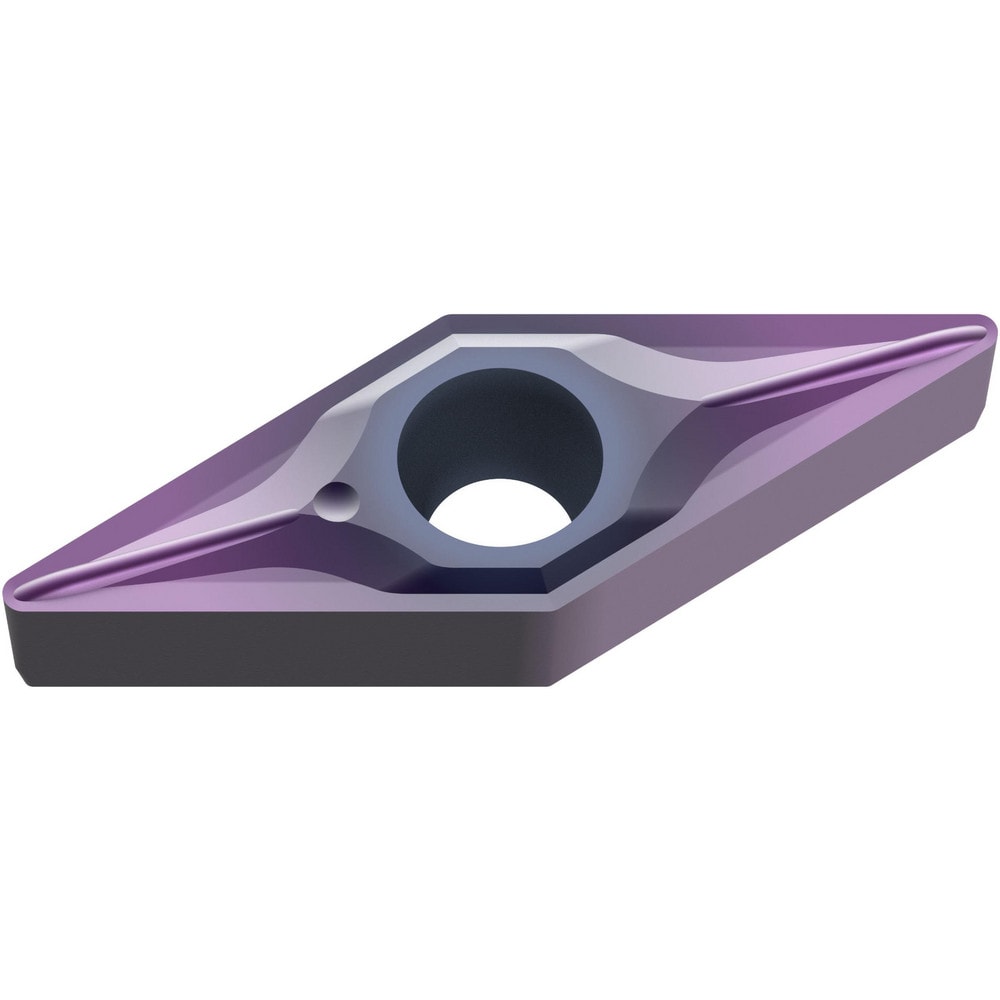

Turning Insert: VBMT221FM VP15TF, Carbide
Item #: 86530581
Brand: Mitsubishi
Model #: 658582
Product Specifications
| ANSI Insert Code | VBMT |
| ISO Insert Code | VBMT |
| Relief Angle | 5.000 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.00 |
| Manufacturer Grade | VP15TF |
| Coating/Finish | PVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Heat Resistant Alloy; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating Classification | PVD |
| Chip Breaker | FM |
| Rake Angle | 5 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
| Country of Origin | Japan |
