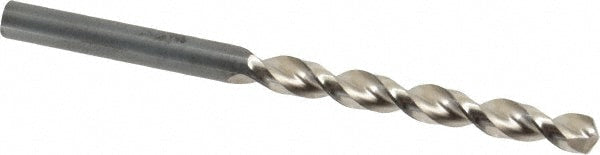

Jobber Drill: 0.2362" Dia, 130 deg Point, Cobalt
Item #: 74208620
Brand: Guhring
Model #: 9006220060000
Product Specifications
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Straw |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-1/4 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 92.87 |
| Overall Length (Inch) | 3-21/32 |
| Overall Length (Decimal Inch) | 3.6563 |
| Flute Length (mm) | 57.15 |
| Flute Length (Decimal Inch) | 2.2500 |
| Series | 622 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.7500 |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Straw |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-1/4 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 92.87 |
| Overall Length (Inch) | 3-21/32 |
| Overall Length (Decimal Inch) | 3.6563 |
| Flute Length (mm) | 57.15 |
| Flute Length (Decimal Inch) | 2.2500 |
| Series | 622 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.7500 |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 74208620 |
| Mfr Part # | 9006220060000 |
| Big Book Page # | 83 |
| Country of Origin Country of Origin is subject to change | Germany |
