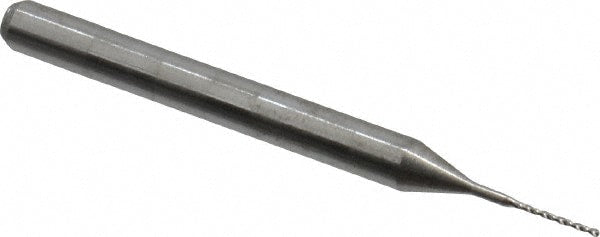

Circuit Board Drill Bit: #77, 130 ° Point, Solid Carbide
Item #: 71465157
Brand: M.A. Ford
Model #: 30201800
Product Specifications
| Drill Bit Size (Wire) | #77 |
| Drill Bit Size (Decimal Inch) | 0.0180 |
| Drill Bit Size (mm) | 0.46 |
| Drill Point Angle | 130 |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (mm) | 4.83 |
| Flute Length (Decimal Inch) | 0.1900 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Fast |
| Series | 302 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0003 - 0.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N; O |
| Number Of Flutes | 2 |
| Material Application | High-Temperature Alloy; Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Titanium |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23241600 |
| Drill Bit Size (Wire) | #77 |
| Drill Bit Size (Decimal Inch) | 0.0180 |
| Drill Bit Size (mm) | 0.46 |
| Drill Point Angle | 130 |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (mm) | 4.83 |
| Flute Length (Decimal Inch) | 0.1900 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Fast |
| Series | 302 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0003 - 0.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N; O |
| Number Of Flutes | 2 |
| Material Application | High-Temperature Alloy; Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Titanium |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23241600 |
| MSC Part # | 71465157 |
| Mfr Part # | 30201800 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
