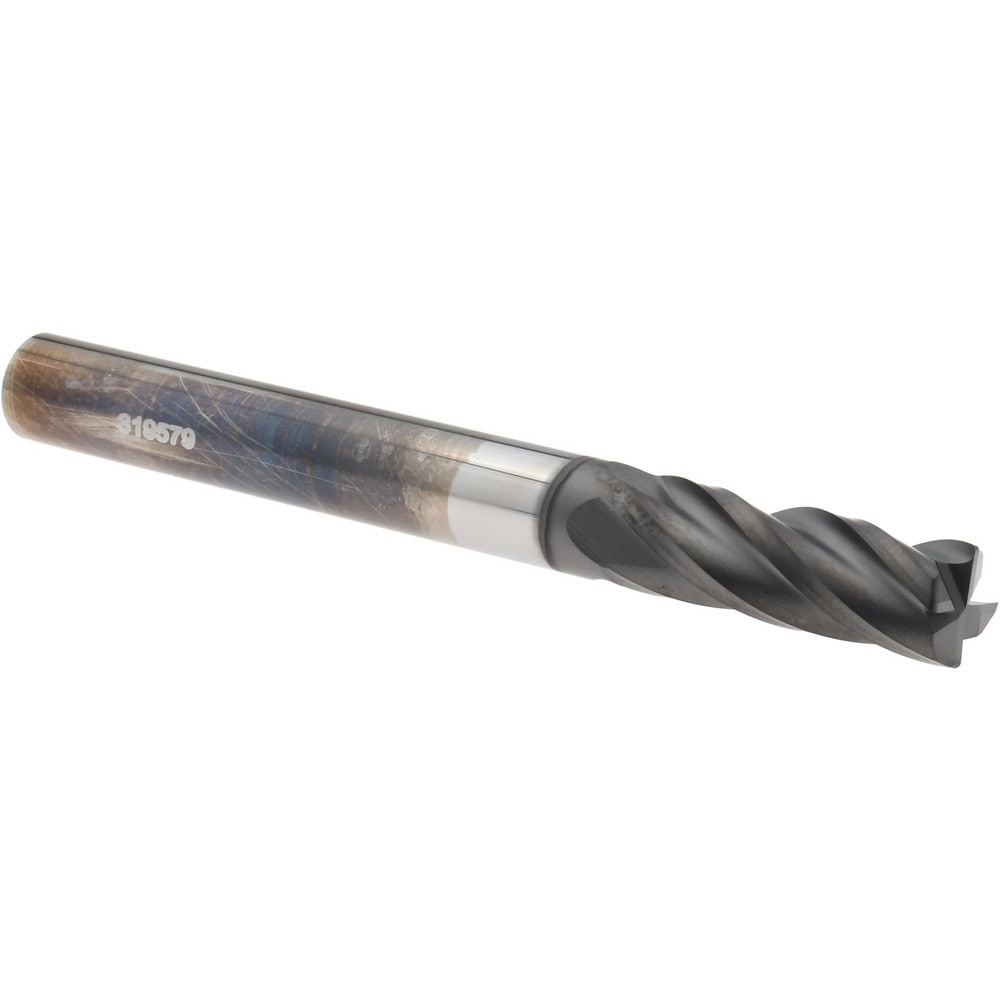

Corner Radius End Mill: 1/4" Dia, 3/4" LOC, 0.0150" Radius, 4 Flute, Solid Carbide
Item #: 69408870
Brand: SP3
Model #: 12097-05
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Diamond |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 1/4 |
| Mill Diameter Tolerance | +0.000000/-0.002000 in; +0.000000/-0.050000 mm |
| Shank Diameter Tolerance | -0.0000/-0.0004 in; -0.000/-0.010 mm |
| Overall Length Tolerance | +1.5000/-1.5000 mm; +0.0600/-0.0600 in |
| UNSPSC Code | 27112803 |
| TIR Maximum (Decimal Inch) | 0.0010 |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Diamond |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Diameter (Inch) | 1/4 |
| Mill Diameter Tolerance | +0.000000/-0.002000 in; +0.000000/-0.050000 mm |
| Shank Diameter Tolerance | -0.0000/-0.0004 in; -0.000/-0.010 mm |
| Overall Length Tolerance | +1.5000/-1.5000 mm; +0.0600/-0.0600 in |
| UNSPSC Code | 27112803 |
| TIR Maximum (Decimal Inch) | 0.0010 |
| MSC Part # | 69408870 |
| Mfr Part # | 12097-05 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
