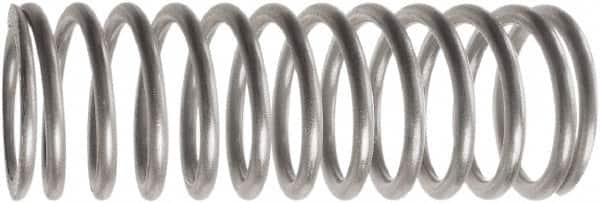

Associated Spring Raymond - 44mm OD, 4mm Wire, 160mm Free Length, Compression Spring - 27.4 Lb Spring Rating, 532.5 N Max Work Load, Music Wire
Item #: 69083046
Brand: Associated Spring Raymond
Model #: D13700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Compression |
| Outside Diameter (mm) | 43.99 |
| Outside Diameter (Decimal Inch) | 1.7320 |
| Free Length (mm) | 160 |
| Free Length (Decimal Inch) | 6.2990 |
| Spring Rate Pounds per Inch (Pounds) | 27.4000 |
| Maximum Work Load (N) | 532-1/2 |
| Solid Height (mm) | 42.01 |
| Solid Height (Decimal Inch) | 1.6540 |
| Material | Music Wire |
| Wire Size (mm) | 3.99 |
| Wire Size (Decimal Inch) | 0.1570 |
