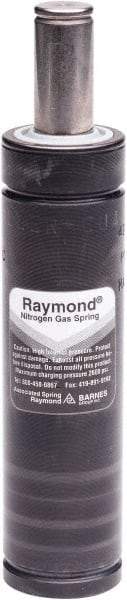

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 20mm Rod Diam, 32.1mm Diam, 25mm Max Stroke, Nitrogen Gas Spring Cylinder - 95mm Body Length, 120mm OAL, 2,700 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69082667
Brand: Associated Spring Raymond
Model #: CU 740-025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 32.10 |
| Body Length (mm) | 95 |
| Body Length (Decimal Inch) | 3.7402 |
| Diameter (Decimal Inch) | 1.2638 |
| Spring Force Initial (N) | 7384 |
| Spring Force Initial (lbf) | 1660 |
| Spring Force Full Stroke (N) | 12010 |
| Spring Force Full Stroke (lbf) | 2700 |
| Rod Diameter (mm) | 20 |
| Rod Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 120 |
| Overall Length (Decimal Inch) | 4.7244 |
| Maximum Stroke (mm) | 25 |
| Maximum Stroke (Decimal Inch) | 0.9843 |
