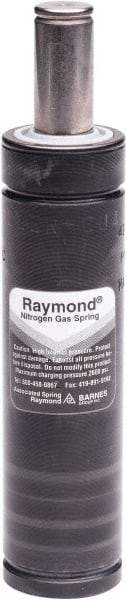

Associated Spring Raymond - G1/8 Fill Port, G1/8 Mt Hole, 30mm Rod Diam, 50.2mm Diam, 10mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 70mm Body Length, 80mm OAL, 5,845 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69082550
Brand: Associated Spring Raymond
Model #: CU 1800-010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | G1/8 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 50.20 |
| Body Length (mm) | 70 |
| Body Length (Decimal Inch) | 2.7559 |
| Diameter (Decimal Inch) | 1.9764 |
| Spring Force Initial (N) | 17993 |
| Spring Force Initial (lbf) | 4045 |
| Spring Force Full Stroke (N) | 26000 |
| Spring Force Full Stroke (lbf) | 5845 |
| Rod Diameter (mm) | 30 |
| Rod Diameter (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 80 |
| Overall Length (Decimal Inch) | 3.1496 |
| Maximum Stroke (mm) | 10 |
| Maximum Stroke (Decimal Inch) | 0.3937 |
