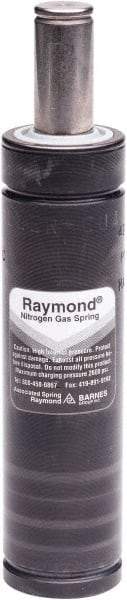

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 20mm Rod Diam, 37.9mm Diam, 32mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 135mm Body Length, 167mm OAL, 3,595 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69079234
Brand: Associated Spring Raymond
Model #: CU 1000-032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 37.90 |
| Body Length (mm) | 135 |
| Body Length (Decimal Inch) | 5.3150 |
| Diameter (Decimal Inch) | 1.4921 |
| Spring Force Initial (N) | 10587 |
| Spring Force Initial (lbf) | 2380 |
| Spring Force Full Stroke (N) | 15991 |
| Spring Force Full Stroke (lbf) | 3595 |
| Rod Diameter (mm) | 20 |
| Rod Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 167 |
| Overall Length (Decimal Inch) | 6.5748 |
| Maximum Stroke (mm) | 32 |
| Maximum Stroke (Decimal Inch) | 1.2598 |
