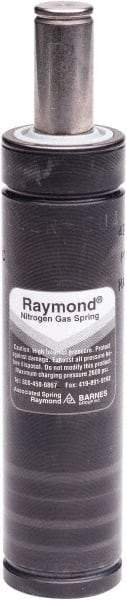

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 12mm Rod Diam, 24.9mm Diam, 50mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 145mm Body Length, 195mm OAL, 1,700 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69079101
Brand: Associated Spring Raymond
Model #: CU 420-050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 24.90 |
| Body Length (mm) | 145 |
| Body Length (Decimal Inch) | 5.7087 |
| Diameter (Decimal Inch) | 0.9803 |
| Spring Force Initial (N) | 4226 |
| Spring Force Initial (lbf) | 950 |
| Spring Force Full Stroke (N) | 7562 |
| Spring Force Full Stroke (lbf) | 1700 |
| Rod Diameter (mm) | 12 |
| Rod Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 195 |
| Overall Length (Decimal Inch) | 7.6772 |
| Maximum Stroke (mm) | 50 |
| Maximum Stroke (Decimal Inch) | 1.9685 |
