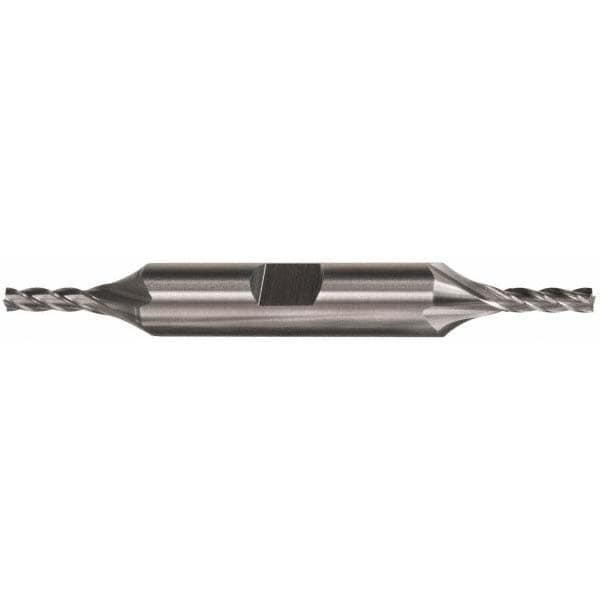

Square End Mill: 7/8" Dia, 1-7/8" LOC, 4 Flute, Cobalt
Item #: 87422697
Brand: Cleveland
Model #: C33004
Product Specifications
| Mill Diameter (Decimal Inch) | 0.8750 |
| Mill Diameter (Inch) | 7/8 |
| Number Of Flutes | 4 |
| End Mill Material | Cobalt |
| Length of Cut (Decimal Inch) | 1.8750 |
| Length of Cut (Inch) | 1-7/8 |
| Shank Diameter (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 6.1250 |
| Overall Length (Inch) | 6-1/8 |
| Single Or Double End | Double |
| Coating/Finish Family | TiCN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Coating/Finish | TiCN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | M42 |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Series | HDC-4C-TC |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
