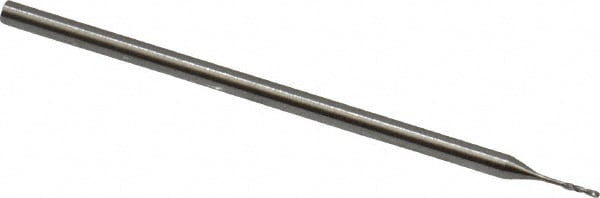

Micro Drill Bit: 0.0100" Dia, 118 deg, Cobalt
Item #: 73510224
Brand: Guhring
Model #: 9003010002550
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0100 |
| Tool Material | Cobalt |
| Flute Length (mm) | 1.90 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 1.52 |
| Maximum Drilling Depth (Decimal Inch) | 0.0600 |
| Series | 301 |
| Overall Length (mm) | 25.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | P; K; M; N |
| Secondary Workpiece Material | Titanium Alloy |
| Secondary Workpiece Material Code | S |
| Shank Diameter (mm) | 1.00 |
| Flute By Diameter Ratio | 5xD |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
| UNSPSC Code | 23241600 |
| Drill Bit Size (Decimal Inch) | 0.0100 |
| Tool Material | Cobalt |
| Flute Length (mm) | 1.90 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 1.52 |
| Maximum Drilling Depth (Decimal Inch) | 0.0600 |
| Series | 301 |
| Overall Length (mm) | 25.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | P; K; M; N |
| Secondary Workpiece Material | Titanium Alloy |
| Secondary Workpiece Material Code | S |
| Shank Diameter (mm) | 1.00 |
| Flute By Diameter Ratio | 5xD |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
| UNSPSC Code | 23241600 |
| MSC Part # | 73510224 |
| Mfr Part # | 9003010002550 |
| Country of Origin Country of Origin is subject to change | Germany |
