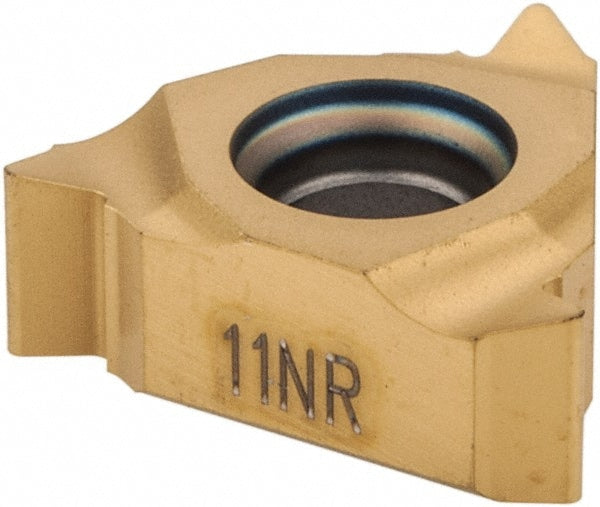

Laydown Threading Insert: 11NR14W CP500, Carbide
Item #: 70480603
Brand: Seco
Model #: 00045867
Product Specifications
| Insert Style | 11NR |
| Insert Size Code | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Threads Per Inch | 14 |
| Thread Type | Internal |
| Thread Standard | Whitworth |
| Insert Hand | Right Hand |
| Included Angle | 55 |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0090 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| UNSPSC Code | 23291804 |
| Insert Style | 11NR |
| Insert Size Code | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Threads Per Inch | 14 |
| Thread Type | Internal |
| Thread Standard | Whitworth |
| Insert Hand | Right Hand |
| Included Angle | 55 |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0090 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| UNSPSC Code | 23291804 |
| MSC Part # | 70480603 |
| Mfr Part # | 00045867 |
| Country of Origin Country of Origin is subject to change | India |
