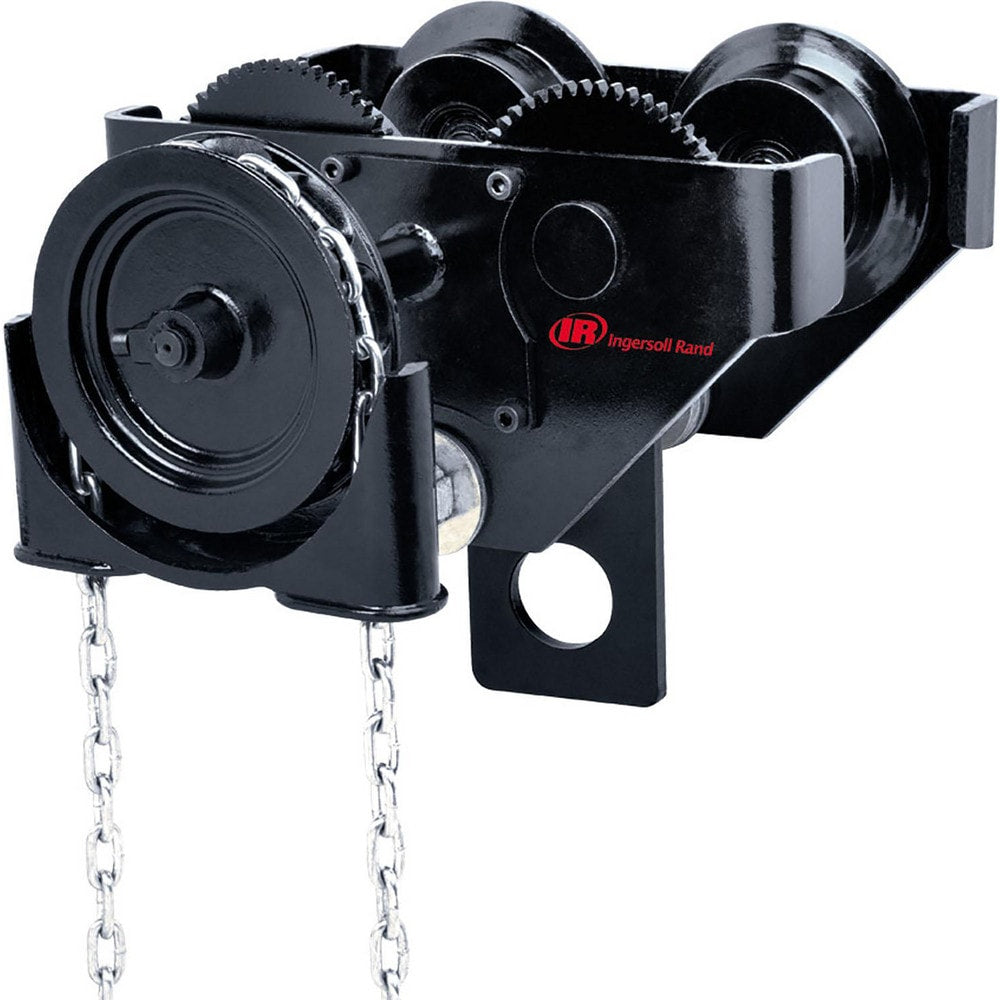

Trolleys; Type: Manual Geared Trolley; Maximum Flange Width: 8; Minimum Flange Width: 3.3; Minimum Radius (Inch): 48.0000
Item #: 75561803
Brand: Ingersoll Rand
Model #: GT020-8-20
Product Specifications
| Type | Manual Geared Trolley |
| Maximum Flange Width | 8 |
| Minimum Flange Width | 3.3 |
| Minimum Radius (Inch) | 48.0000 |
| Flange Width (Inch) | 3.3 to 8 |
| Body Material | Steel |
| Hoist Mount Type | Eye |
| Maximum I-beam Height | 6 |
| Beam Shape | Flat & Tapered |
| Color | Black |
| Wheel Diameter (Inch) | 4.2500 |
| Wheel Material | Cast Iron |
| Standards | ASME; CMAA; ANSI |
| Number Of Wheels | 4.000 |
| Finish | Painted |
| Additional Information | Universal Tread Fits Flat or Taperered Beams |
| Type of Tread | Universal Tread |
| Length (Decimal Inch - 4 Decimals) | 14.9000 |
| Load Capacity (Tons) | 2 |
| Load Capacity (Lb. - 3 Decimals) | 4400.000 |
| Width (Decimal Inch - 4 Decimals) | 13.8000 |
| UNSPSC Code | 24101706 |
| Country of Origin | China |
