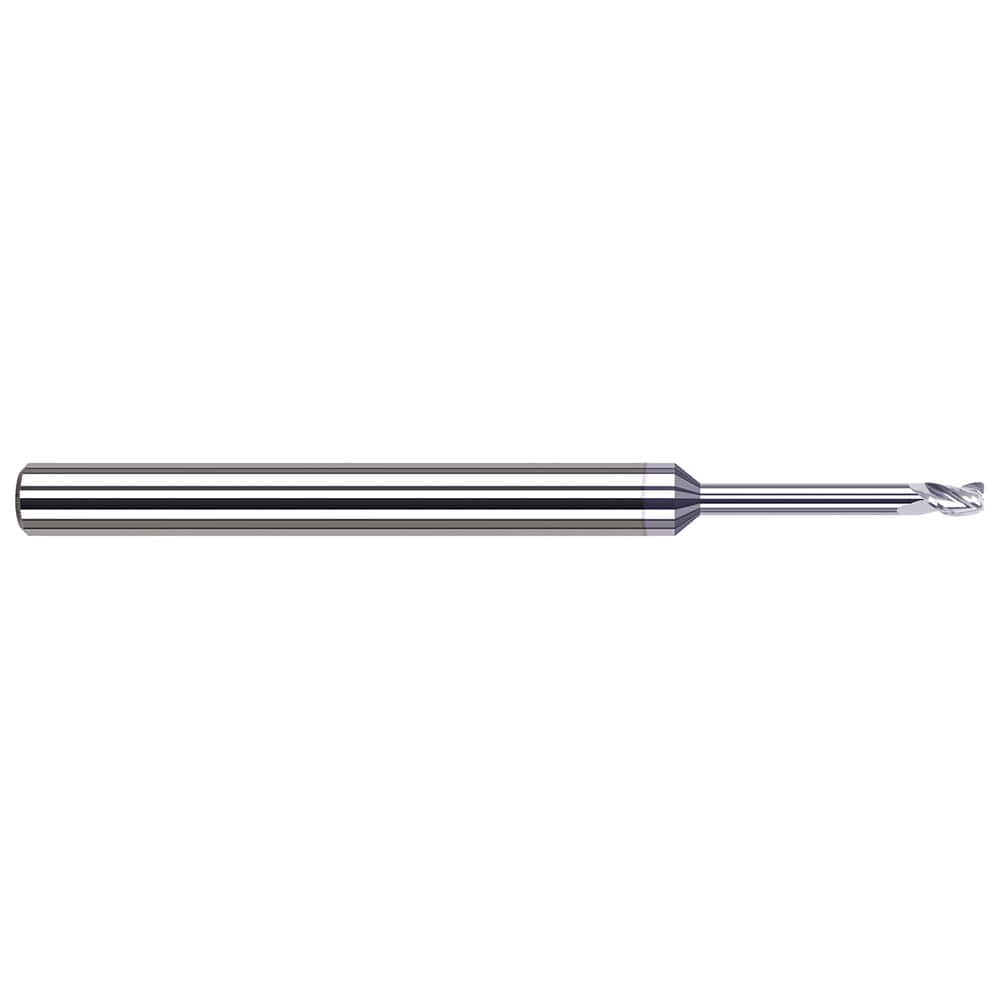

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.20 ; Mill Diameter (Inch): 3/64 ; Mill Diameter (Decimal Inch): 0.0470 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0030 ; Number of Flutes: 3
Item #: 68931138
Brand: Harvey Tool
Model #: 961347-C8
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.20 ; Mill Diameter (Inch): 3/64 ; Mill Diameter (Decimal Inch): 0.0470 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0030 ; Number of Flutes: 3
| Mill Diameter (mm) | 1.20 |
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0470 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0030 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Length of Cut (mm) | 1.8000 |
| Length of Cut (Decimal Inch) | 0.0710 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Reach Length (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 0.3750 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute |
