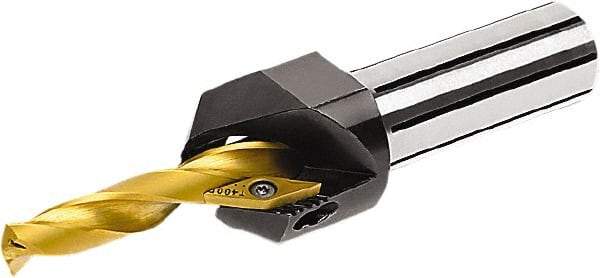

Seco - 8.01 to 10mm Diam, Straight Shank, 16mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - SD200 Insert, 69.5mm OAL
Item #: 68771013
Brand: Seco
Model #: 24467
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 10.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.3937 |
| Minimum Drill Diameter (mm) | 8.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.3154 |
| Body Shank Diameter (mm) | 16.00 |
| Body Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | SD200 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 25.00 |
| Body Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 69.50 |
| Overall Length (Decimal Inch) | 2.7362 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 44.50 |
| Shank Length (Decimal Inch) | 1.7520 |
| Through Coolant | NonThrough Coolant |
| Series | Seco Feedmax |
| Includes | Cassette; Insert Key; Locking Screw; Module Key; Stop Screw |
