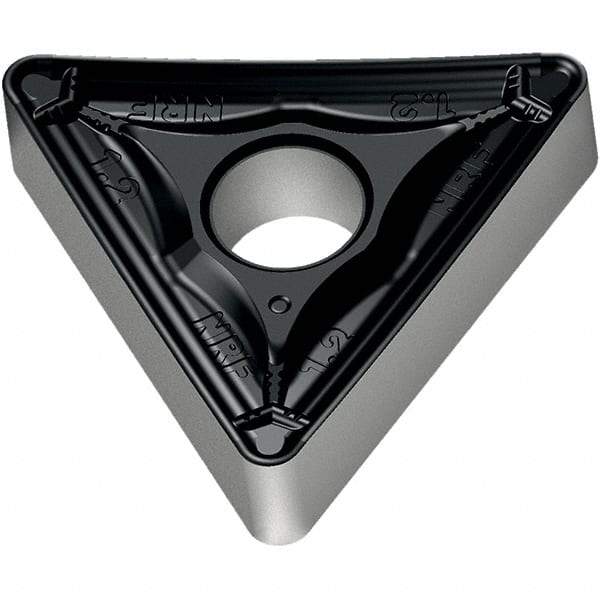

Walter - TNMM543 NRF Grade WPP20S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 68694074
Brand: Walter
Model #: 6164623
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMM |
| Insert Size | 543 |
| Material | Carbide |
| Length (mm) | 27.00 |
| Length (Decimal Inch) | 1.0630 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | WPP20S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P20/K30 |
| Chip Breaker | NRF |
| ISO Number | TNMM270612-NRF |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMM543-NRF |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
