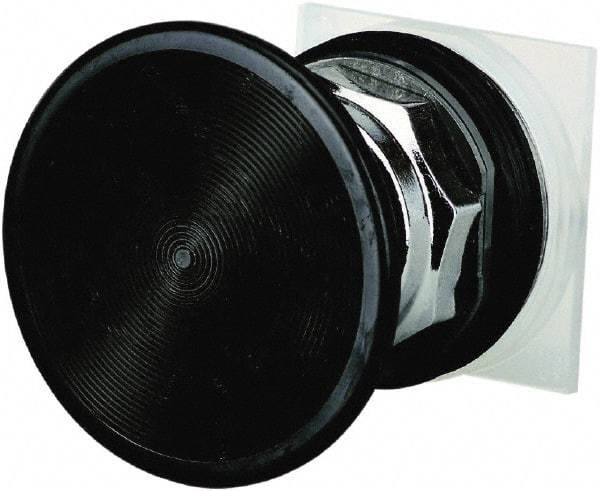

Schneider Electric - 1.18 Inch Mount Hole, Extended Straight, Pushbutton Switch Only - Round, Black Pushbutton, Momentary (MO), Weatherproof, Dust and Oil Resistant
Item #: 68650936
Brand: Schneider Electric
Model #: 9001KR5B
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Mounting Hole Diameter (Decimal Inch) | 1.1800 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Type | Extended (Straight) |
| Pushbutton Shape | Round |
| Pushbutton Color | Black |
| Operation Type | Momentary (MO) |
| Voltage | 600 V |
| NEMA Rating | 1; 2; 3; 4; 6; 12; 13; 3R |
| Resistance Features | Dust Resistant; Oil Resistant; Weatherproof |
| Standards Met | CE; CSA LR24590 Class 3211 03; UL Listed File No. E42259 CCN NKCR |
