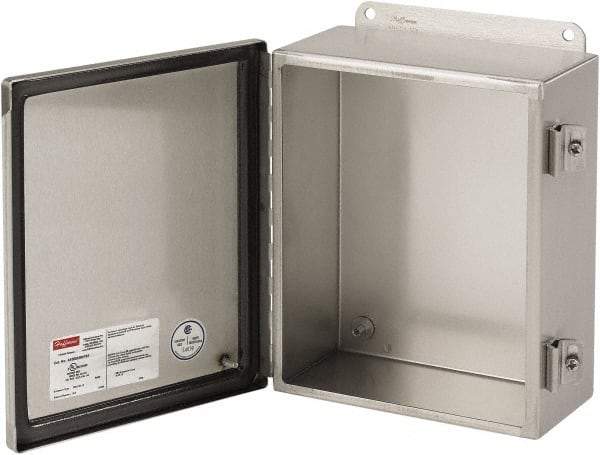

nVent Hoffman - Stainless Steel Junction Box Enclosure Hinge Flat Cover - NEMA 4, 12, 13, 4X, 6" Wide x 8" High x 4" Deep
Item #: 68600741
Brand: nVent Hoffman
Model #: A8064CHNFSS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Stainless Steel |
| NEMA Rating | 4; 12; 13; 4X |
| Overall Width (Inch) | 6 |
| Overall Width (Decimal Inch) | 6 |
| Overall Height (Inch) | 8 |
| Overall Height (Decimal Inch) | 8 |
| Overall Depth (Inch) | 4 |
| Overall Depth (Decimal Inch) | 4 |
| Finish/Coating | #4 Brushed Finish |
| Material Gauge | 14; 16 |
| Includes | Bonding Provision; Clamps; Seamless Foam-in-place Gasket; Stainless Steel Screws; Weld Nuts |
| Standards Met | CSA File 42184; cUL File E27567; cUL File E61997; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E27567; UL File E61997; UL Listed 50; UL Listed 508A; UL Listed 50E |
| Overall Width (mm) | 152 |
| Overall Height (mm) | 203 |
| Overall Depth (mm) | 102 |
