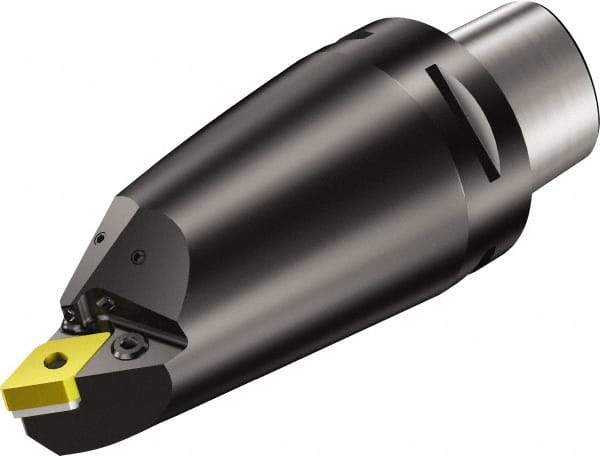

Sandvik Coromant - Right Hand Cut, Size C6, DNMG 150608 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.56mm Ctr to Cutting Edge, 130mm Head Length, Through Coolant, Series T-Max P
Item #: 68444462
Brand: Sandvik Coromant
Model #: 5730258
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 130.00 |
| Head Length/Projection (Decimal Inch) | 5.1181 |
| Insert Style | DNMG 150608 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.56 |
| Center to Cutting Edge (Decimal Inch) | 0.0220 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Axial Rake Angle | -5 |
| Radial Rake Angle | -15 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | DNMG 150608 |
| Head Connection Size | 16 |
