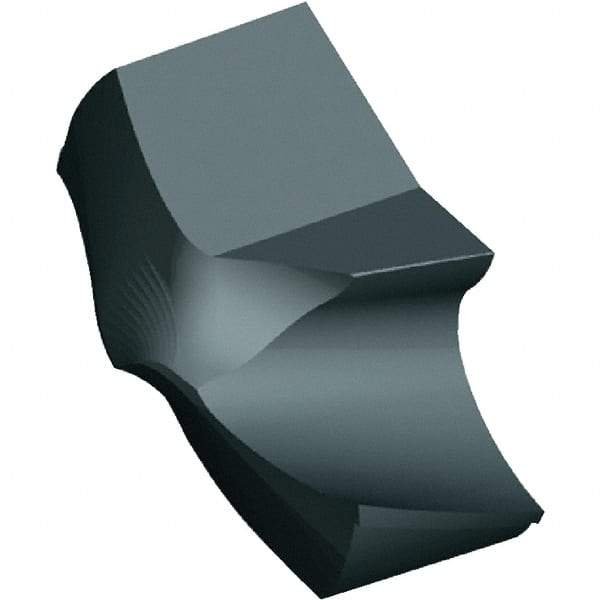

Kennametal - Series KSEM Plus, 35mm Diam Grade KCPM45 140° Replaceable Drill Tip - Carbide, TiAlN Finish, 9 Seat Size
Item #: 68440965
Brand: Kennametal
Model #: 5626762
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 35.00 |
| Diameter (Decimal Inch) | 1.3780 |
| Included Angle | 140 |
| Material | Carbide |
| Manufacturer's Grade | KCPM45 |
| Series | KSEM Plus |
| Coating | TiAlN |
| Insert Seat Size | 9 |
| Coating Process | PVD |
| Height (mm) | 20.30 |
| Height (Decimal Inch) | 0.7992 |
| Insert Geometry | HPG |
