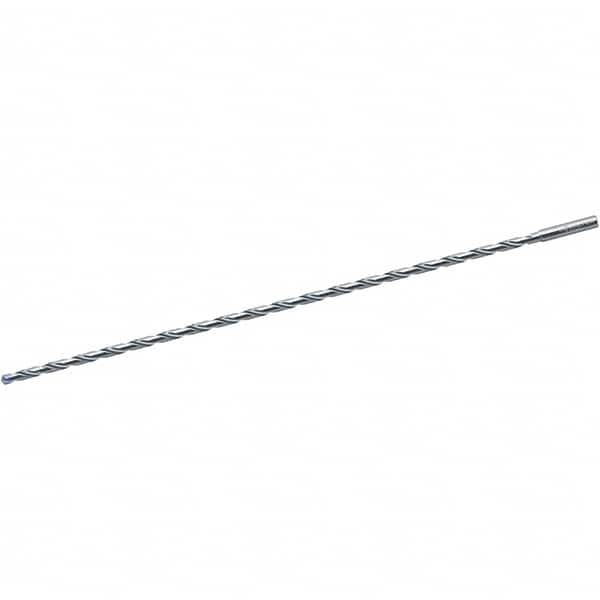

Extra Length Drill Bit: 0.217″ Dia, 130 °, Solid Carbide TiNAl Finish, 10.85″ Flute Length, 13″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series A7595TTP
Item #: 68403534
Brand: Walter-Titex
Model #: 6280497
Product Specifications
| Drill Bit Size (mm) | 5.51 |
| Overall Length (Inch) | 13 |
| Flute Length (mm) | 275.59 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiNAl |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | A7595TTP |
| Point Type | Proprietary |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | e7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | ISO; DIN 6535 HA; ANSI |
| Drill Bit Size (Decimal Inch) | 0.2170 |
| Overall Length (Decimal Inch) | 13.0000 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (mm) | 5.99 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 10.8500 |
| Flute By Diameter Ratio | 50xD |
| Maximum Drilling Depth (Decimal Inch) | 10.8500 |
