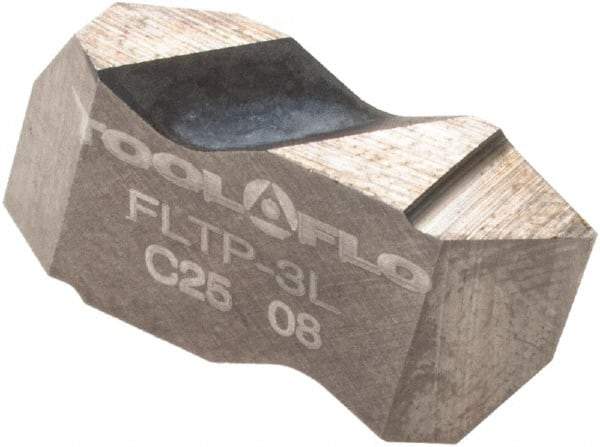

Tool-Flo - FLTP3 Grade C25, Internal/External 60° V Threading Insert - 6 to 20 TPI Ext Pitch, 5 to 12 TPI Int Pitch, Left Hand Insert, Carbide
Item #: 68367358
Brand: Tool-Flo
Model #: 613800LG
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLTP |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | 60 Degrees V |
| Manufacturer's Grade | C25 |
| Internal Pitch/TPI | 5-12 TPI |
| External Pitch/TPI | 6-20 TPI |
| Material | Carbide |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Thickness (Decimal Inch) | 0.1950 |
| Series | Flo-Lock |
| Rake | Positive |
| Tip to Top of Insert (Decimal Inch) | 0.0980 |
| Blade Height (Decimal Inch) | 0.3440 |
| Manufacturers Catalog Number | FLTP-3L |
