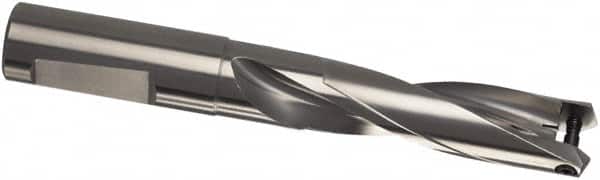

Guhring - 13 to 13.49mm Diam, 3xD, 41.3mm Max Depth, 14mm Shank Diam, 108mm Flute, 108mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 125 Seat Size, 3xD HT 800 WP Toolholder, Series 4107
Item #: 68205681
Brand: Guhring
Model #: 9041070125000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4107 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 41.30 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 125 |
| Toolholder Style | 3xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 108.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 108.00 |
| Toolholder Material | High Speed Steel |
