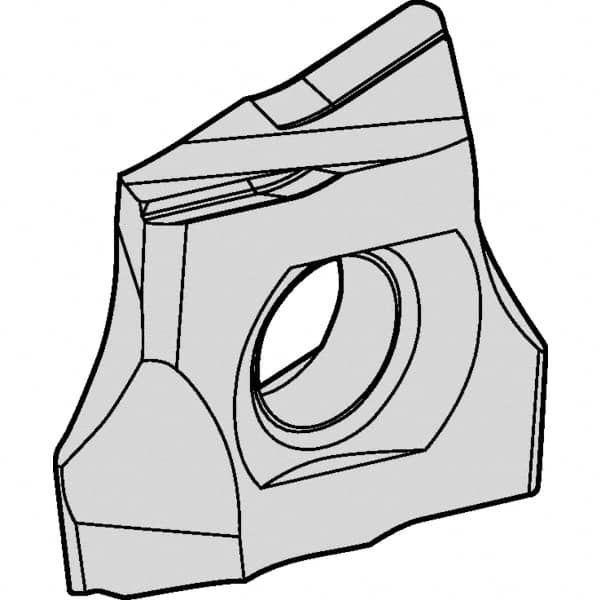

Kennametal - D4FIX140608 MN Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, 58° Irregular, 0.233 Thick, 1/32" Corner Radius
Item #: 68178193
Brand: Kennametal
Model #: 4054447
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | D4FIX |
| Insert Size | 140608 |
| Material | Carbide |
| Length (mm) | 6.71 |
| Length (Decimal Inch) | 0.2640 |
| Thickness (Decimal Inch) | 0.2330 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MN |
| Hole Diameter (mm) | 6.10 |
| Hole Diameter (Decimal Inch) | 0.2400 |
| ISO Number | D4FIX140608RMN |
| Rake | Negative |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 58 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
