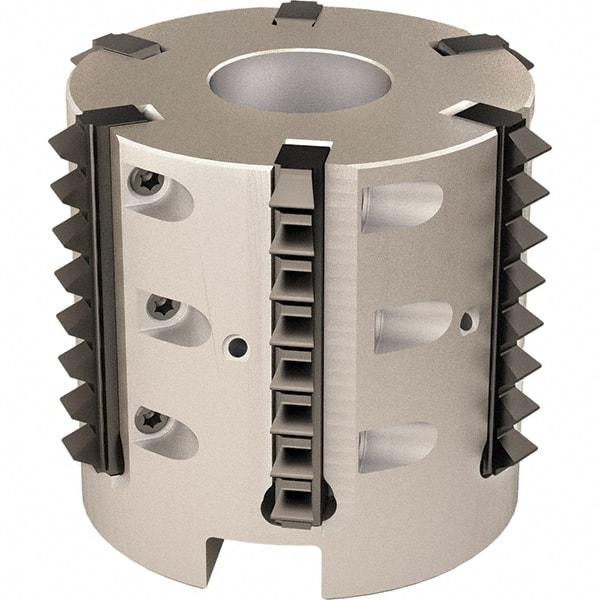

Vargus - 2.478" Cut Diam, 7.874" Max Depth of Cut, 1" Arbor Hole Diam, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 41B, 6 Inserts, Toolholder Style RTMC-D, 2" OAL
Item #: 68165703
Brand: Vargus
Model #: 80870
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.478 |
| Maximum Hole Depth (Decimal Inch) | 7.8740 |
| Insert Style | 41B |
| Insert Size | R41 |
| Toolholder Style | RTMC-D |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 1 |
| Overall Length (Decimal Inch) | 2.0000 |
| Number of Threading Inserts | 6 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 2.165 |
