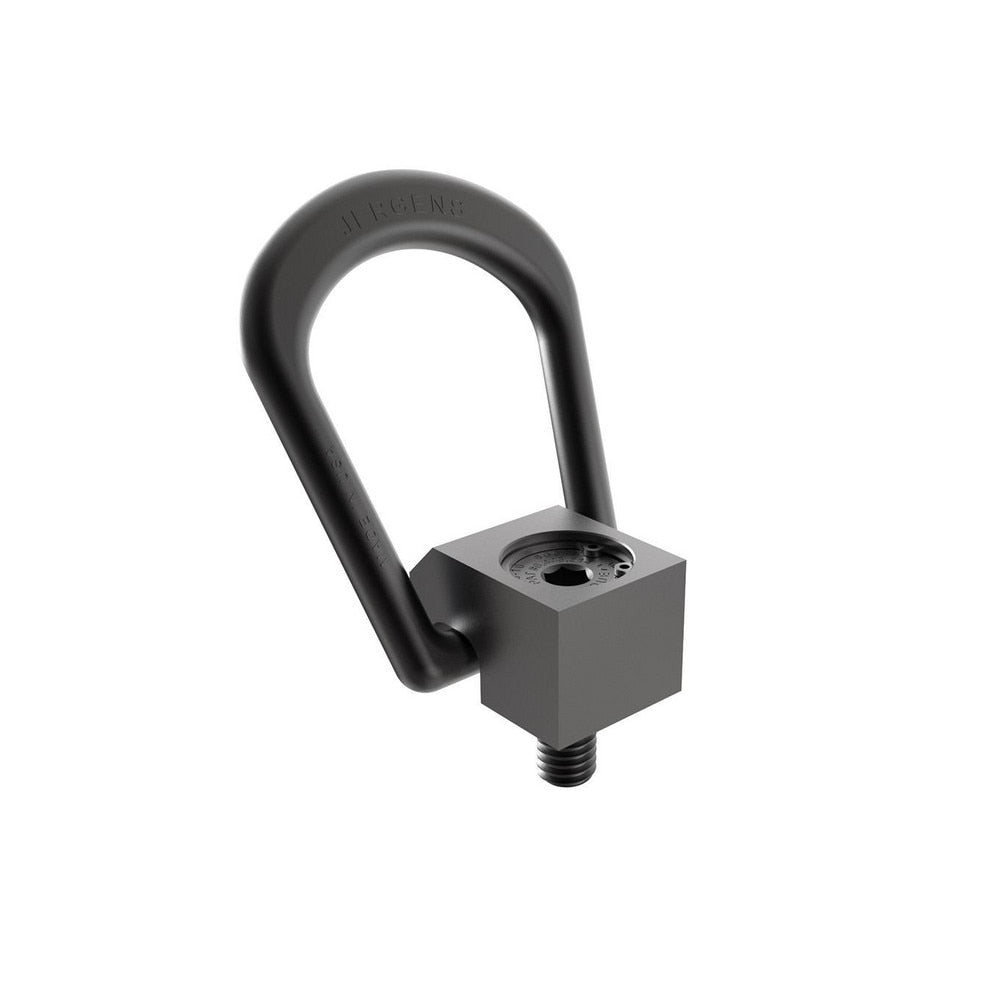

Swivel Hoist Ring: Screw-On, 650 lb Capacity
Item #: 92616705
Brand: Jergens
Model #: 47800
Product Specifications
| Hoist Ring Type | Swivel |
| Load Capacity (Lbs) | 650 |
| Thread Size | 5/16-18 |
| Radius (mm) | 25.40 |
| Radius (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 15/32 |
| Thread Length (Decimal Inch) | 0.4688 |
| Ring Height (mm) | 75.44 |
| Ring Height (Decimal Inch) | 2.9700 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 7.94 |
| Ring Thickness | 0.3100 |
| Overall Length (mm) | 100.8000 |
| Overall Length (Decimal Inch) | 3.9688 |
| Ring External Width (Inch) | 2.3750 |
| Ring External Width (mm) | 60.00 |
| Ring Internal Width (mm) | 44.45 |
| Ring Internal Width (Inch) | 1.7500 |
| Torque | 4.745 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Screw-On |
| Number Of Mounting Holes | 1.000 |
| Standards | ASTM E1444 |
| Ring Opening (Decimal Inch) | 2.06 |
| Flange Diameter (Decimal Inch) | 0.625 |
| Ring Outside Diameter (Decimal Inch) | 1.3125 |
| Ring Width (mm) | 60.00 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 2-3/8 |
| Hex Size (Inch) | 1/4 |
| Ring Width (Decimal Inch) | 2.3750 |
| Mounting Surface Diameter (Decimal Inch) | 0.31 |
| Clevis Height (mm) | 8 |
| Head/Holder Diameter (Fractional Inch) | 1 |
| Clevis Width (Inch) | 2-3/8 |
| Mounting Surface Diameter (mm) | 7.94 |
| Flange Diameter (mm) | 15.80 |
| Clevis Height (Inch) | 5/16 |
| Clevis Width (mm) | 60 |
| Ring Opening (mm) | 52.32 |
| Country of Origin | UNITED STATES |
