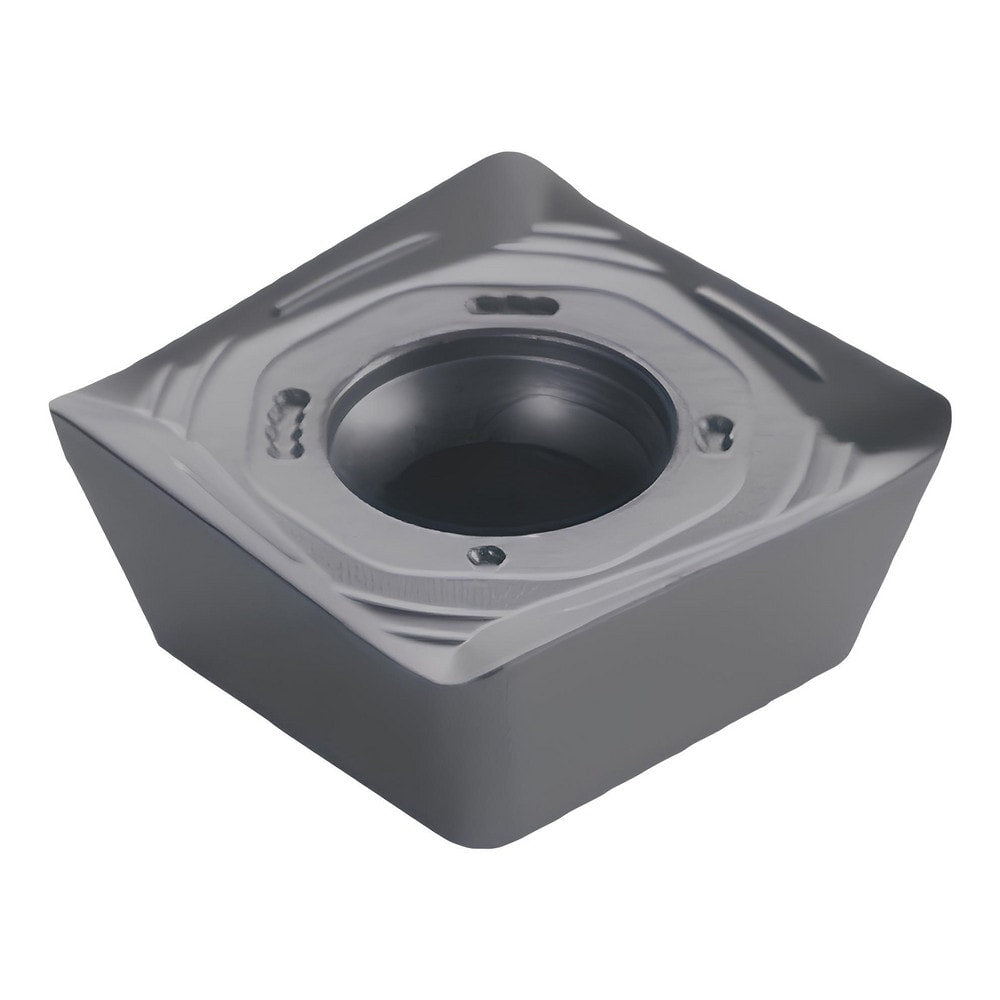

Milling Insert: SDHT09T308FR-NM CK010, Solid Carbide
Item #: 92709799
Brand: OSG
Model #: 7811076
Product Specifications
| Insert Style | SDHT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | CK010 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.03 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 0.16 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 15.00 |
| Insert Size Code | 09T308 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3571 |
| Inscribed Circle (mm) | 9.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Series | 78PSF |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | SDHT09T308FR-NM |
| Iso Code | SDHT09T308FR-NM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 7811076 |
| Cutter Series Compatibility | 78PSF |
| Chip Breaker | NM |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 2.50 |
| Width (Decimal Inch - 4 Decimals) | 0.3571 |
| Width (mm - 2 Decimals) | 0.16 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3571 |
| Country of Origin | Japan |
