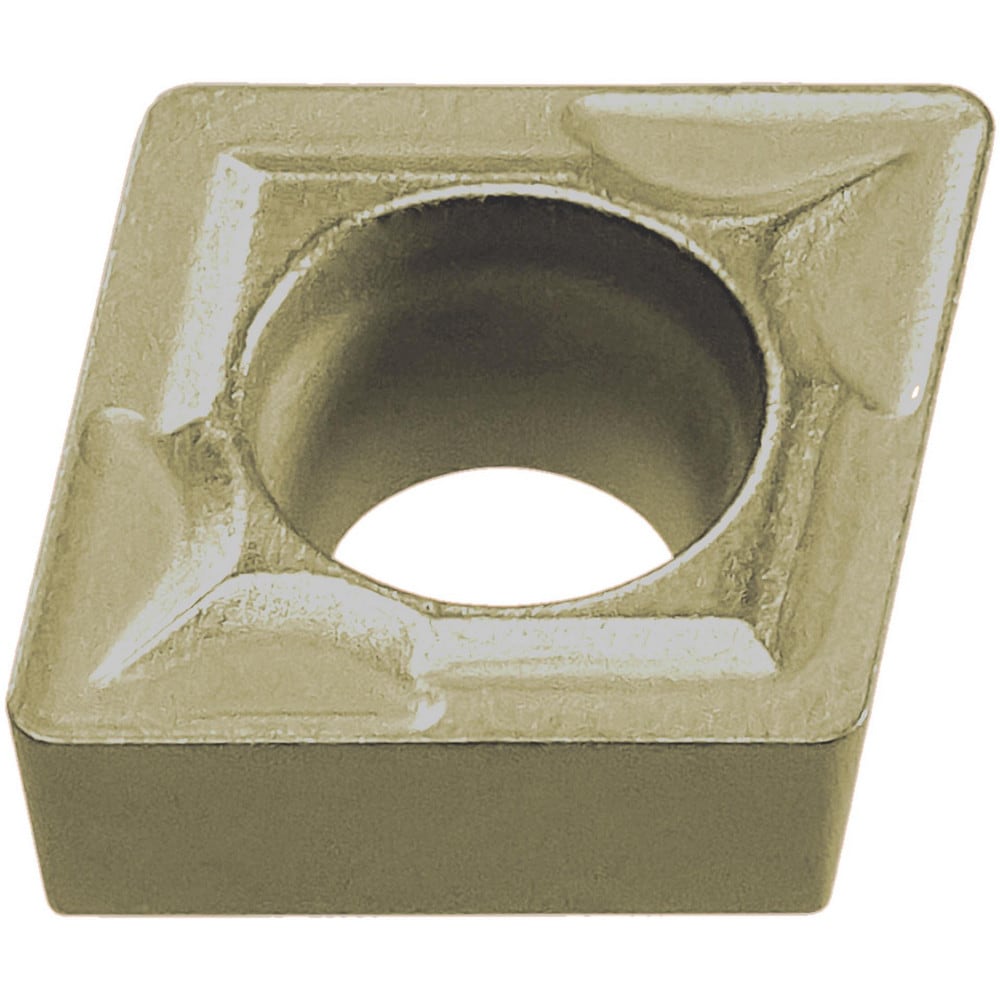

Turning Insert: CCMT2.521 MP3025, Cermet
Item #: 89035547
Brand: Mitsubishi
Model #: 602634
Product Specifications
| ANSI Insert Code | CCMT2.521 |
| ISO Insert Code | CCMT080304 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | MP3025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Inscribed Circle (mm) | 7.94 |
| Insert Material | Cermet |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | Pressed |
| ANSI Size Code | 2.521 |
| ISO Size Code | 080304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.5 |
| Country of Origin | Japan |
