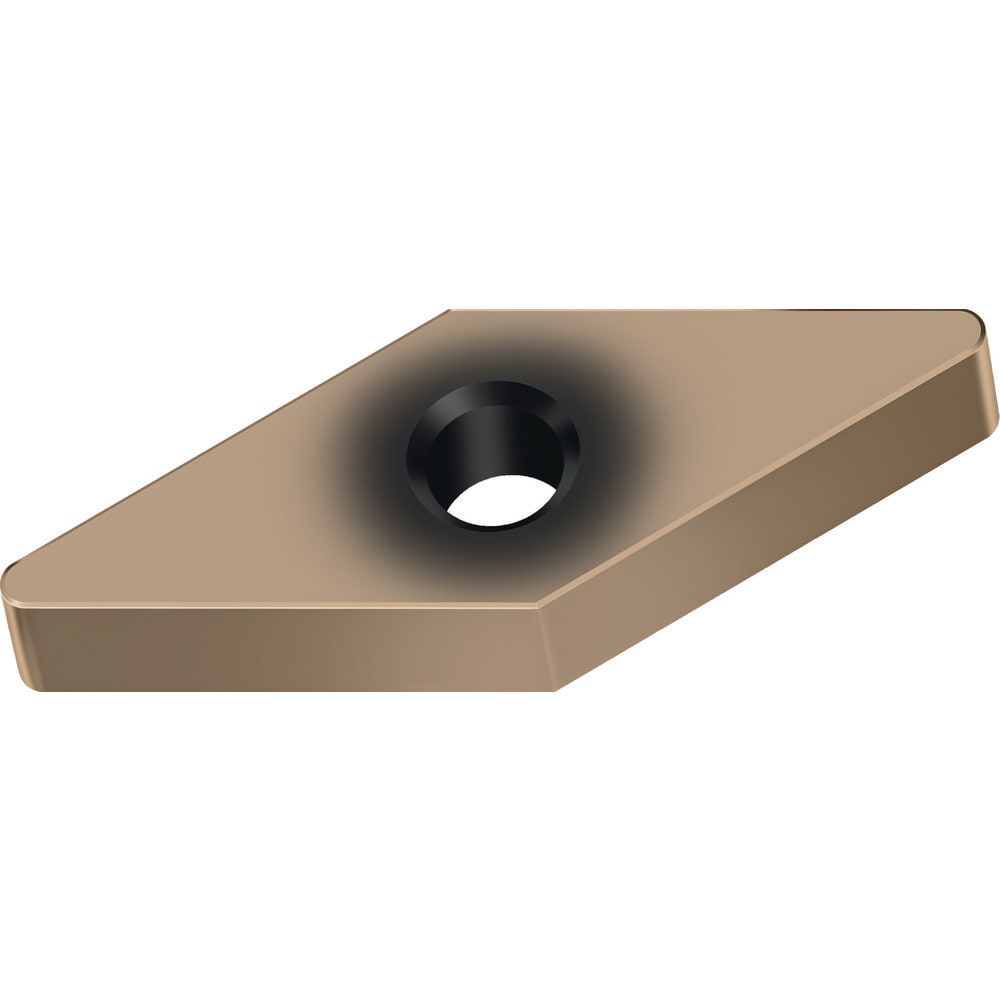

Turning Insert: VNGA331SMS WCH10C, Carbide
Item #: 89377071
Brand: Walter
Model #: 8064422
Product Specifications
| ANSI Insert Code | VNGA331 |
| ISO Insert Code | VNGA160404 |
| Relief Angle | 0.000 |
| Insert Style | VNGA |
| Corner Radius (mm) | 0.40 |
| Included Angle | 35.00 |
| Manufacturer Grade | WCH10C |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | VNGA |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Length (mm) | 16.61 |
| Manufacturers Catalog Number | VNGA160404SM-S WCH10C |
| Chip Breaker | SM |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | Japan |
