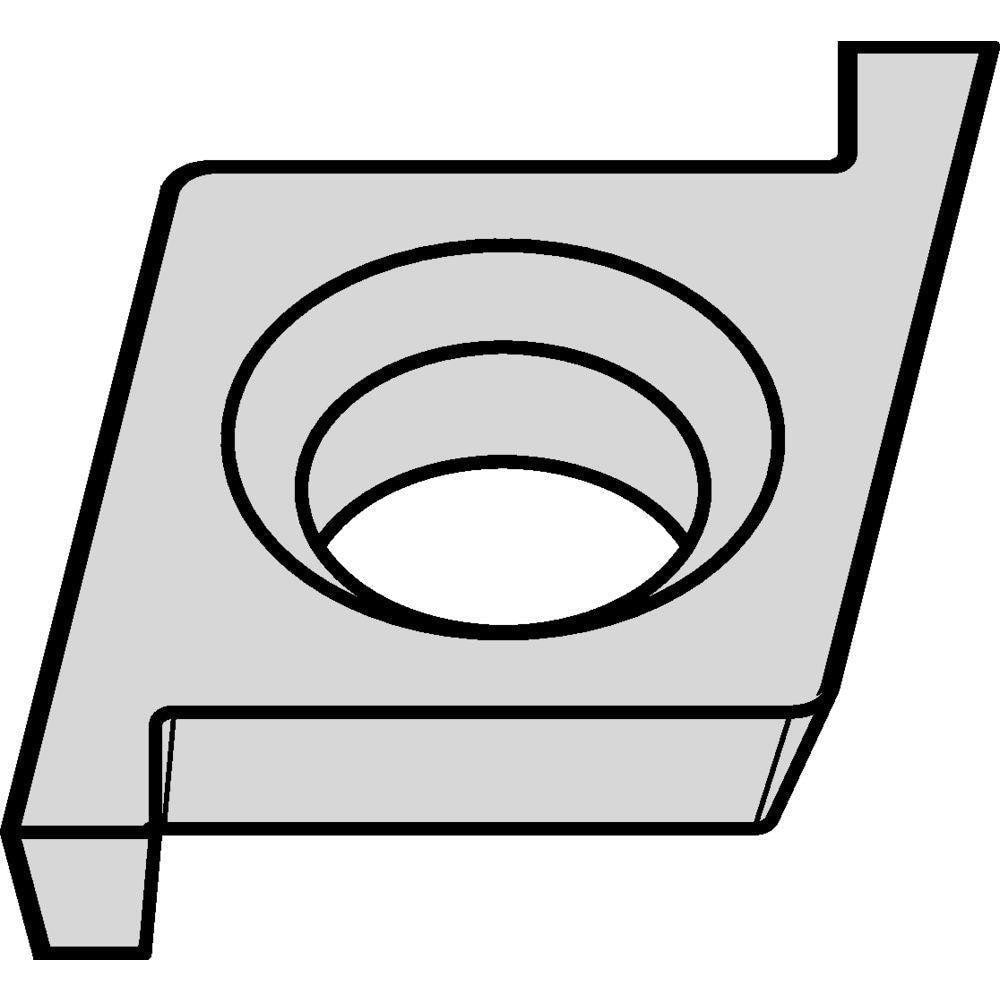

Grooving Insert: CDG 1.2 , KCU10B, Carbide
Item #: 82161225
Brand: Kennametal
Model #: 7096407
Product Specifications
| Insert Style | CDG |
| Insert Size Code | 120302 |
| Cutting Width (Decimal Inch) | 0.0300 |
| Cutting Width (mm) | 0.76 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0750 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0780 |
| Corner Radius (mm) | 1.98 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw |
| Insert Size | 1.2 |
| Lead Angle | 15.000 |
| Multi-use Tool | Yes |
| Relief Angle | 15 |
| Insert Thickness (Decimal Inch) | 0.0500 |
| UNSPSC Code | 23242105 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Chip Breaker | None |
| Inscribed Circle (mm) | 3.96 |
| Overall Width (mm) | 1.2700 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0500 |
| Included Angle Degree | 80 |
| Coating/Finish | AlTiN |
| Insert Thickness | 1.27 |
