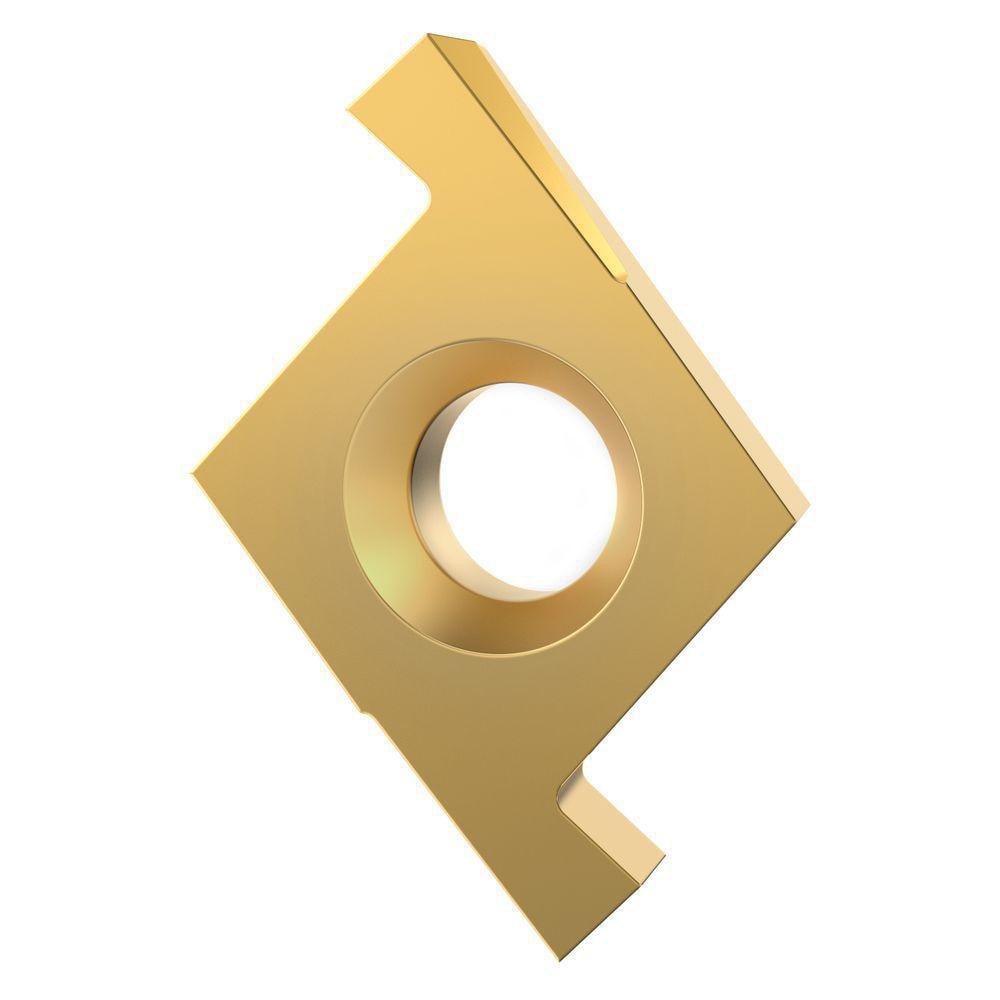

Grooving Insert: CPG 2 , KCU10B, Carbide
Item #: 82161241
Brand: Kennametal
Model #: 7096400
Product Specifications
| Insert Style | CPG |
| Insert Size Code | 20602 |
| Cutting Width (Decimal Inch) | 0.0600 |
| Cutting Width (mm) | 1.52 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0750 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10B |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw |
| Insert Size | 2 |
| Lead Angle | 11.000 |
| Multi-use Tool | Yes |
| Relief Angle | 11 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| UNSPSC Code | 23242105 |
| Chip Breaker | None |
| Overall Width (mm) | 1.9100 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0750 |
| Included Angle Degree | 80 |
| Coating/Finish | AlTiN |
| Insert Thickness | 1.91 |
