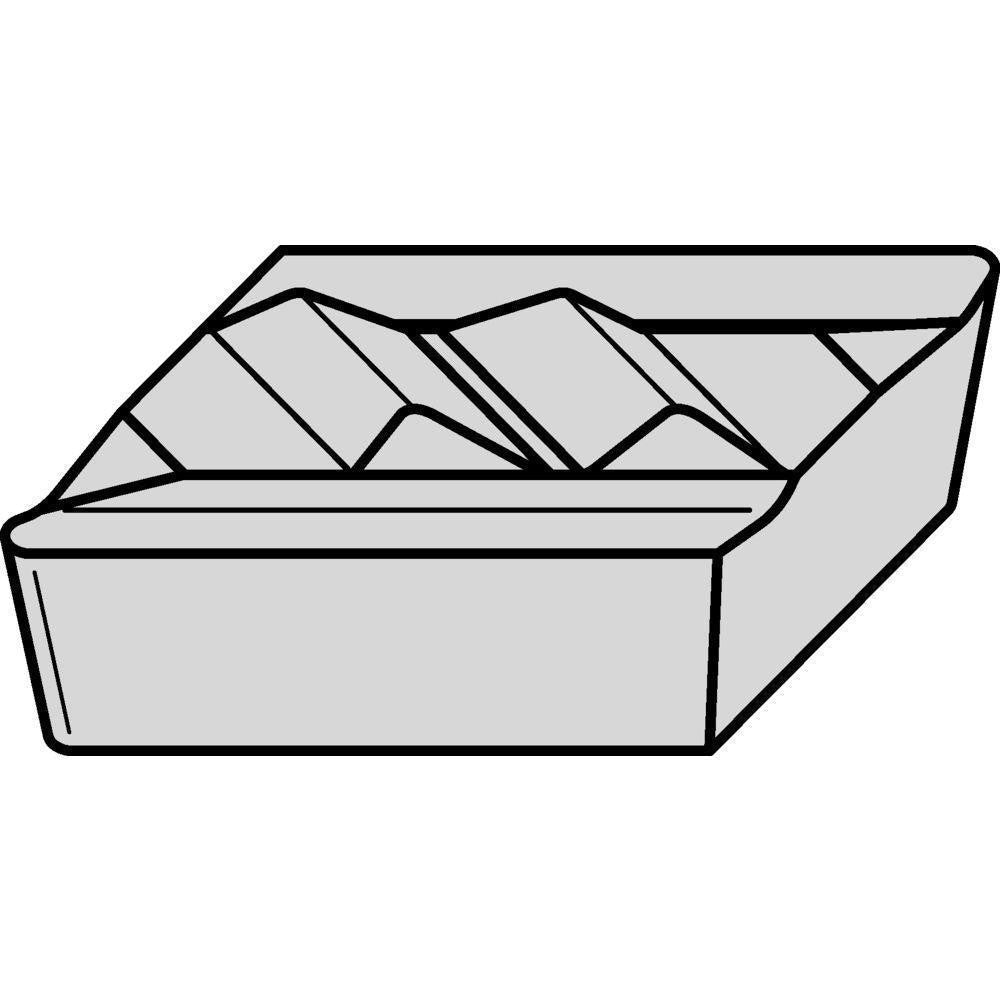

Profiling Insert: NPL13M05N KCU10B, 0.1875" Thickness
Item #: 82156860
Brand: Kennametal
Model #: 7096295
Product Specifications
| Insert Style | NPR/L |
| Insert Size Code | 13M05 |
| Insert Material | Carbide |
| Width (Inch) | 3/16 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.7600 |
| Insert Height (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.1663 |
| Maximum Depth of Cut (mm) | 4.22 |
| Insert Holding Method | Clamp |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Included Angle | 11.00 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Iso Code | KNUX150405L25 |
| Rake Angle | 0.000 |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (mm - 2 Decimals) | 4.76 |
| UNSPSC Code | 23242105 |
