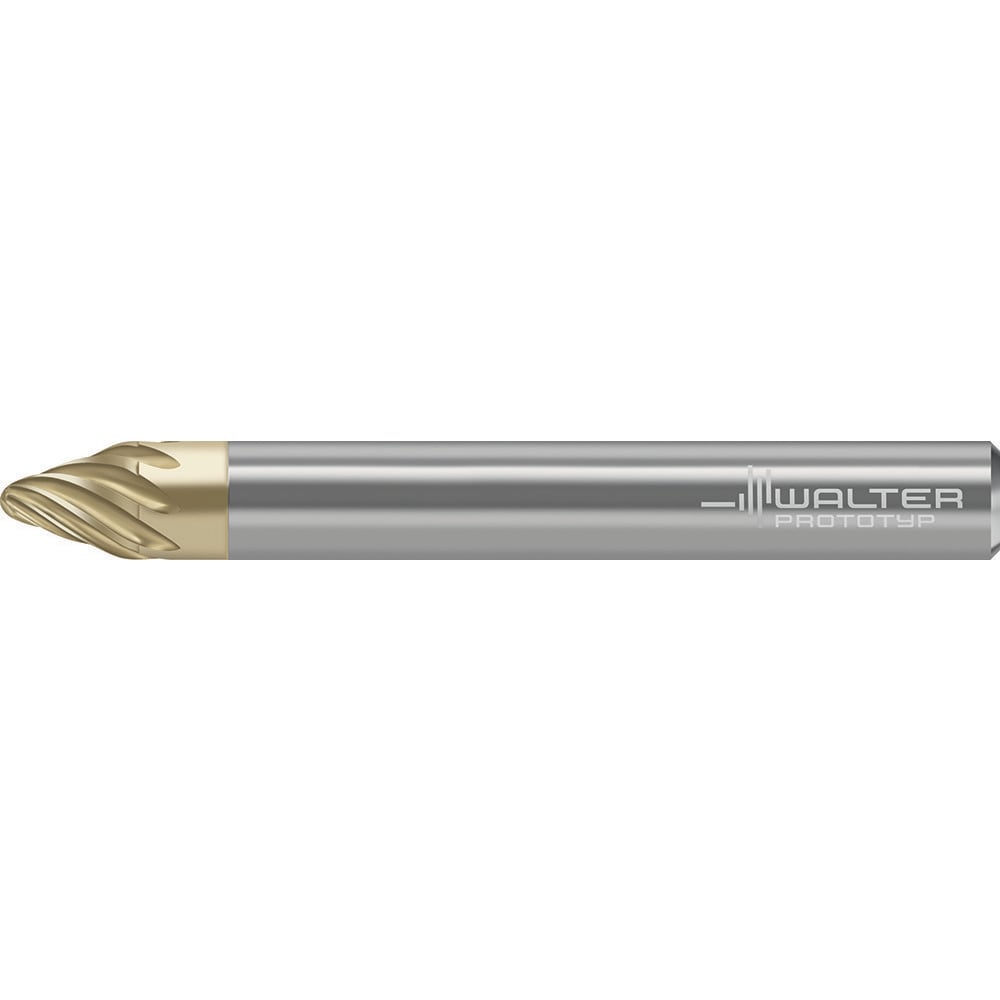

Barrel Cutter End Mills; End Type: Circle Segment Oval Form; Material: Solid Carbide; Taper Angle Per Side: 20.02; Small End Diameter (mm): 8.00; Shank Diameter (mm): 16.0000; Length of Cut (mm): 15.1700; Helix Angle: 30.00
Item #: 51370120
Brand: Walter-Prototyp
Model #: 7876740
Product Specifications
| End Type | Circle Segment Oval Form |
| Material | Solid Carbide |
| Taper Angle Per Side | 20.02 |
| Small End Diameter (mm) | 8.00 |
| Shank Diameter (mm) | 16.0000 |
| Length of Cut (mm) | 15.1700 |
| Helix Angle | 30.00 |
| Overall Length (mm) | 115.0000 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Series/List | MD838 |
| Finish Coating | ZrN; TiAlN |
| Major Radius (Decimal Inch) | 1.5500 |
| Length of Cut (Decimal Inch) | 0.5972 |
| Shank Diameter | 0.6299 |
| Number Of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.5276 |
| Small End Diameter (Decimal Inch) | 0.3150 |
| UNSPSC Code | 27112803 |
