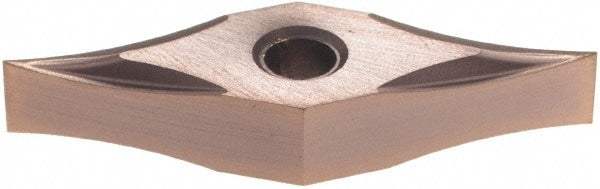

Turning Insert: VNGP330D 323, Carbide
Item #: 42398990
Brand: Made in USA
Model #: 46150
Product Specifications
| ANSI Insert Code | VNGP330 |
| ISO Insert Code | VNGP160402 |
| Relief Angle | 0 |
| Insert Style | VNGP |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 35 |
| Manufacturer Grade | 323 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNGP |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Standards | ISO; ANSI |
| Chip Breaker | P |
| ANSI Size Code | 330 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330 |
