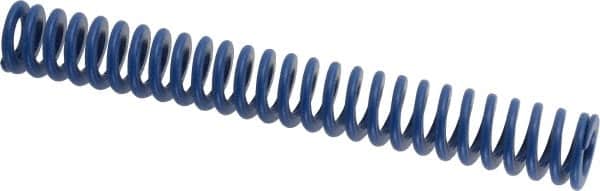

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 152mm Free Length, Blue Die Spring - 752.4 N Max Deflection, 57mm Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 67899757
Brand: Associated Spring Raymond
Model #: 204-424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 20.00 |
| Rod Diameter (mm) | 10.00 |
| Free Length (mm) | 152.00 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 752.40 |
| Maximum Deflection (mm) | 57.00 |
| Travel To Solid Load (mm) | 57.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
