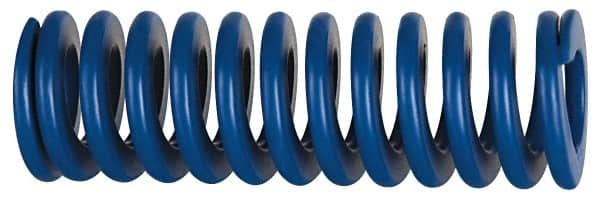

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 5-1/2" Free Length, Blue Die Spring - 785.2 N Max Deflection, 52mm Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 67899740
Brand: Associated Spring Raymond
Model #: 204-422
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 20.00 |
| Rod Diameter (mm) | 10.00 |
| Free Length (mm) | 139.00 |
| Free Length (Inch) | 5-1/2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 785.20 |
| Maximum Deflection (mm) | 52.00 |
| Travel To Solid Load (mm) | 52.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
