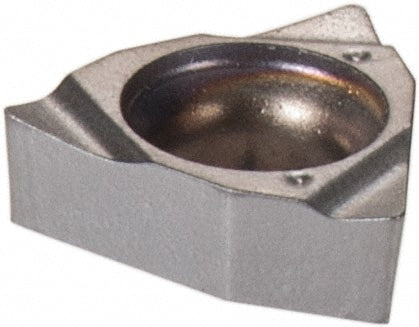

Boring Inserts; Insert Style: WBMT; Insert Size Code: 520; Insert Material: Carbide; Material Grade: P40; Manufacturer Grade: IC354; Inscribed Circle (Inch): 5/32
Item #: 52742285
Brand: Iscar
Model #: 5504121
Product Specifications
| Insert Style | WBMT |
| Insert Size Code | 520 |
| Insert Material | Carbide |
| Material Grade | P40 |
| Manufacturer Grade | IC354 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Relief Angle | 5 |
| Chipbreaker | T |
| Series | Isoturn |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | WBMT 520R |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | WBMT 520R |
| Length (Decimal Inch - 4 Decimals) | 0.0860 |
| Coating/Finish | TiCN; TiN |
| UNSPSC Code | 23242105 |
| Length (mm) | 2.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 2.01 |
