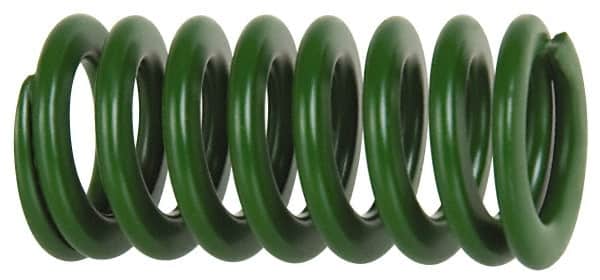

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 5" Free Length, Green Die Spring - 484.5 N Max Deflection, 51mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67898668
Brand: Associated Spring Raymond
Model #: 203-420
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 20.00 |
| Rod Diameter (mm) | 10.00 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 484.50 |
| Maximum Deflection (mm) | 51.00 |
| Travel To Solid Load (mm) | 51.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
