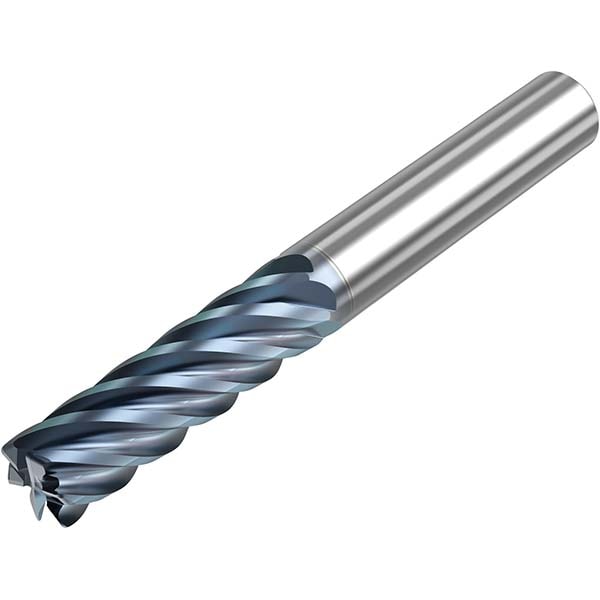

Corner Radius End Mill: 1/2" Dia, 1-5/8" LOC, 0.0300" Radius, 6 Flute, Solid Carbide
Item #: 16456204
Brand: Seco
Model #: 10008085
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | HTA |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | +0.00100 to -0.00100 in |
| Mill Diameter Tolerance | +0.000000/-0.002000 in |
| Shank Diameter Tolerance | -0.0001 - -0.0004 in |
| Overall Length Tolerance | +0.0600/-0.0600 in |
| Primary Workpiece Material | Stainless Steel |
| UNSPSC Code | 27112803 |
| Series | S638R |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | Medium |
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1-5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | HTA |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | +0.00100 to -0.00100 in |
| Mill Diameter Tolerance | +0.000000/-0.002000 in |
| Shank Diameter Tolerance | -0.0001 - -0.0004 in |
| Overall Length Tolerance | +0.0600/-0.0600 in |
| Primary Workpiece Material | Stainless Steel |
| UNSPSC Code | 27112803 |
| Series | S638R |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | Medium |
| MSC Part # | 16456204 |
| Mfr Part # | 10008085 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
