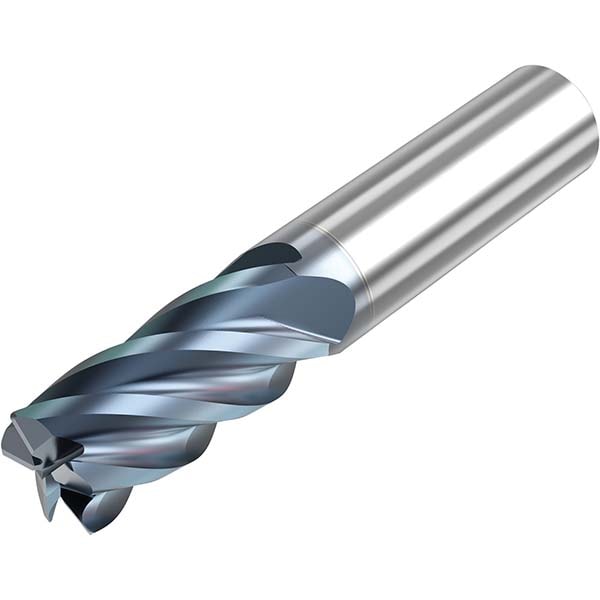

Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 0.0600" Radius, 5 Flute, Solid Carbide
Item #: 16455693
Brand: Seco
Model #: 10008601
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | HTA |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Standard |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | +0.00100 to -0.00100 in |
| Mill Diameter Tolerance | +0.000100/-0.002000 in |
| Shank Diameter Tolerance | -0.0001 - -0.0004 in |
| Overall Length Tolerance | +0.0600/-0.0600 in |
| UNSPSC Code | 27112803 |
| Series | STS540 |
