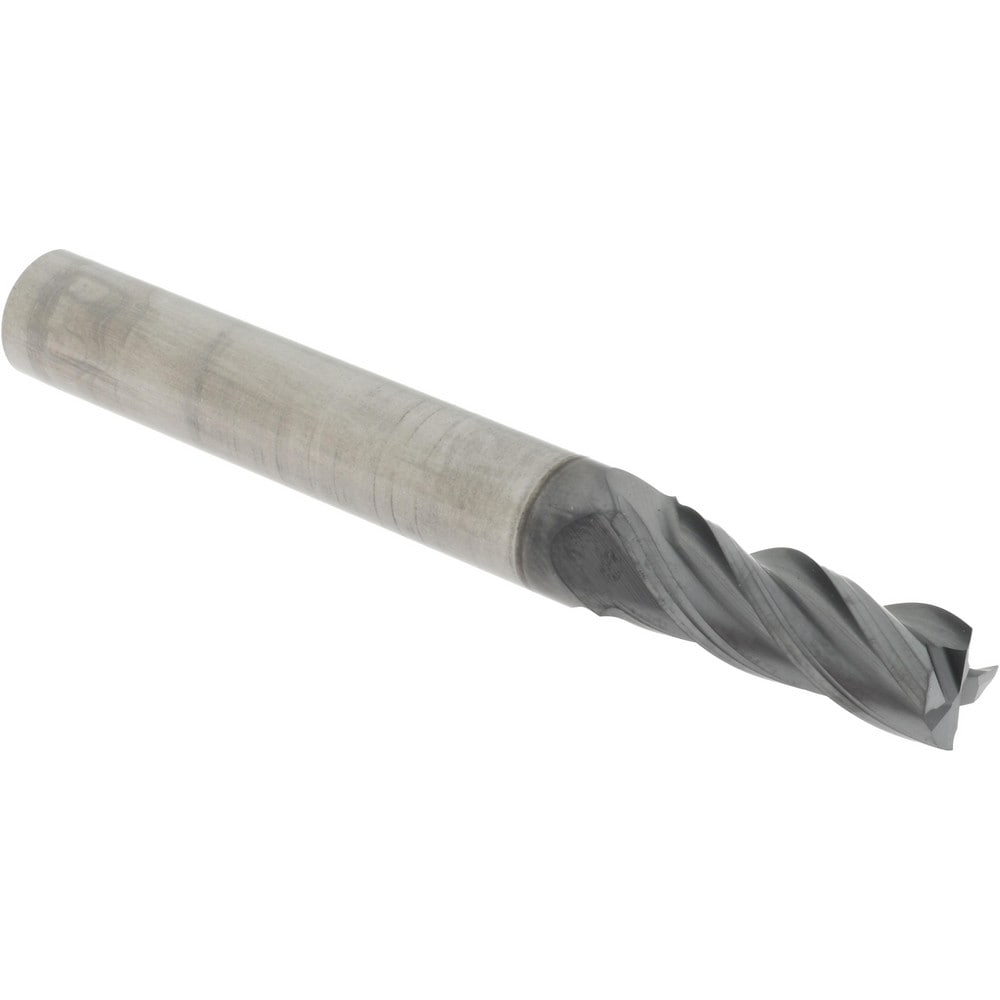

Square End Mill: 7.00 mm Dia, 19.00 mm LOC, 4 Flute, Solid Carbide
Item #: 44191286
Brand: Accupro
Model #: 95168598
Product Specifications
| Mill Diameter (mm) | 7.00 |
| Mill Diameter (Decimal Inch) | 0.2756 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7480 |
| Length of Cut (mm) | 19.00 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 65.00 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 35-60 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Coating/Finish | AlTiN |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Series | ASQSC4-AT-CCVH |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
