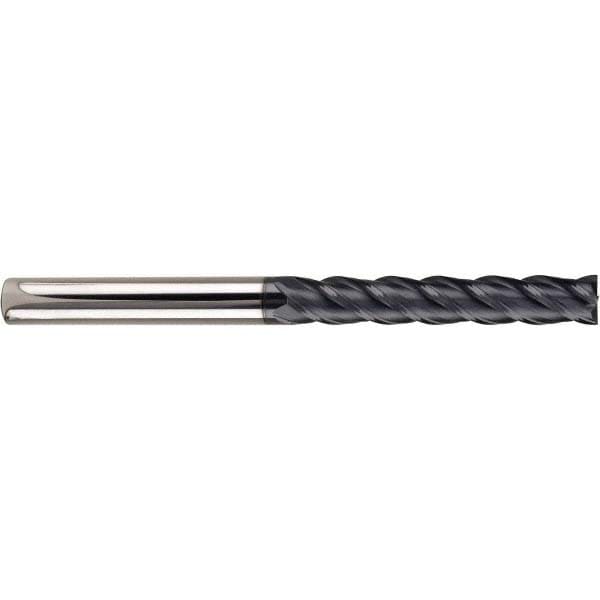

Square End Mill: 10.00 mm Dia, 38.00 mm LOC, 4 Flute, Solid Carbide
Item #: 64297112
Brand: SGS
Model #: 70556
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.4960 |
| Length of Cut (mm) | 38.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 100.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti-NAMITE-X |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Steel |
| Primary Workpiece Material Code | P; S |
| Coating/Finish | Ti-NAMITE-X |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Long |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Mill Diameter Tolerance | +0.000/-0.050 mm |
| Shank Diameter Tolerance | +0.000/-0.009 mm |
| Series | 7M |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.4960 |
| Length of Cut (mm) | 38.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 100.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti-NAMITE-X |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Steel |
| Primary Workpiece Material Code | P; S |
| Coating/Finish | Ti-NAMITE-X |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Long |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Mill Diameter Tolerance | +0.000/-0.050 mm |
| Shank Diameter Tolerance | +0.000/-0.009 mm |
| Series | 7M |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| MSC Part # | 64297112 |
| Mfr Part # | 70556 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
