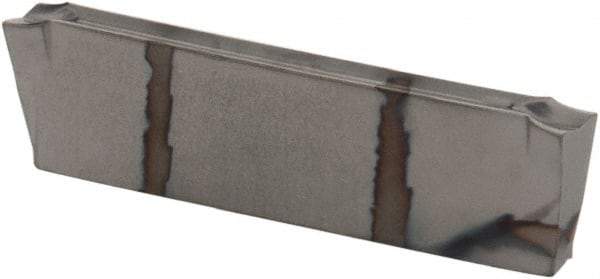

Iscar - DGL JS IC328 Grade, 0.055" Cutting Width, Carbide Cutoff Insert - 15° Left Hand Lead Angle, 0.0008" Cnr Rad, TiN/TiCN Coated, Double End
Item #: 67612077
Brand: Iscar
Model #: 6002745
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGL |
| Lead Angle Direction | Left Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 1.40 |
| Cutting Width (Decimal Inch) | 0.0550 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiN/TiCN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | JS |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Coating Process | PVD |
| Overall Length (mm) | 15.40 |
| Overall Length (Decimal Inch) | 0.6063 |
| Corner Radius (Decimal Inch) | 0.0008 |
| Corner Radius (mm) | 0.02 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | DGL 1400JS-15D |
