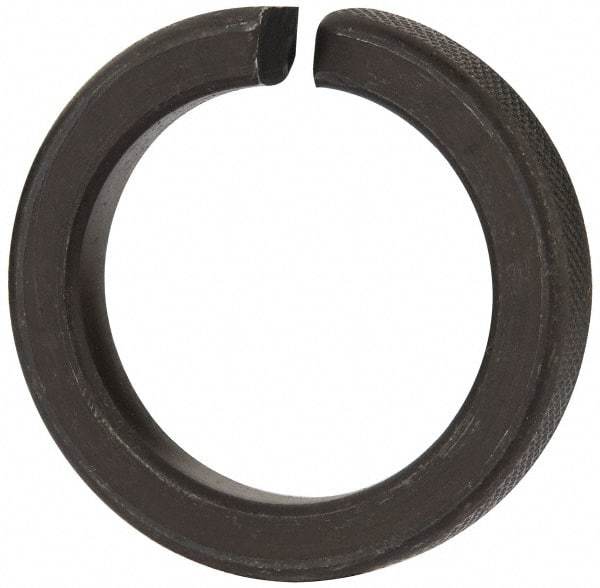

Value Collection - 1-1/2", 1.504" ID, 3/8" Thick High Collar Split Lock Washer - Steel, Uncoated, 1.504" Min ID, 1.534" Max ID, 2.17" Max OD
Item #: 67496729
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
High collar split lock washers are thicker than standard split lock washers. They have a smaller outside diameter that is compatible with small-diameter screws.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | High Collar Split Lock Washer |
| Screw Size | 1-1/2 |
| Material | Steel |
| Finish/Coating | Uncoated |
| Inside Diameter (Decimal Inch) | 1.5040 |
| Thickness (Decimal Inch) | 0.3750 |
| Minimum Inside Diameter (Decimal Inch) | 1.5040 |
| Maximum Inside Diameter (Decimal Inch) | 1.5340 |
| Maximum Outside Diameter (Decimal Inch) | 2.1700 |
| Military Specification | Does Not Meet Military Specifications |
