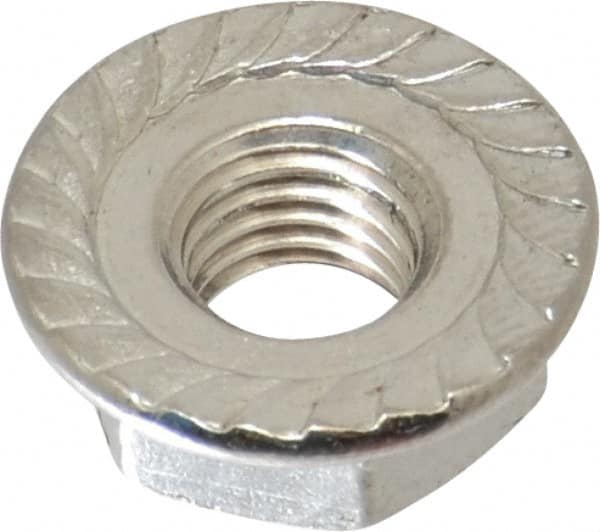

Value Collection - 1/4-28, 19/32" Flange Diam, Serrated Flange Nut - Grade 18-8 Stainless Steel, 0.236" Flange Height
Item #: 67483925
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Serrated flange nuts have serrations along the outside diameter that prevent loosening and increase the nut's locking power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Serrated Flange Nut |
| Material | Stainless Steel |
| Thread Size | 1/4-28 |
| Flange Diameter (Decimal Inch) | 0.5940 |
| Material Grade | 18-8 |
| Flange Height (Inch) | 0.2360 |
| Minimum Width Across Flats (Decimal Inch) | 0.4280 |
| Maximum Width Across Flats (Decimal Inch) | 0.4380 |
| Minimum Height (Decimal Inch) | 0.2220 |
| Maximum Height (Decimal Inch) | 0.2360 |
| Minimum Flange Diameter (Decimal Inch) | 0.5740 |
| Maximum Flange Diameter (Decimal Inch) | 0.5940 |
