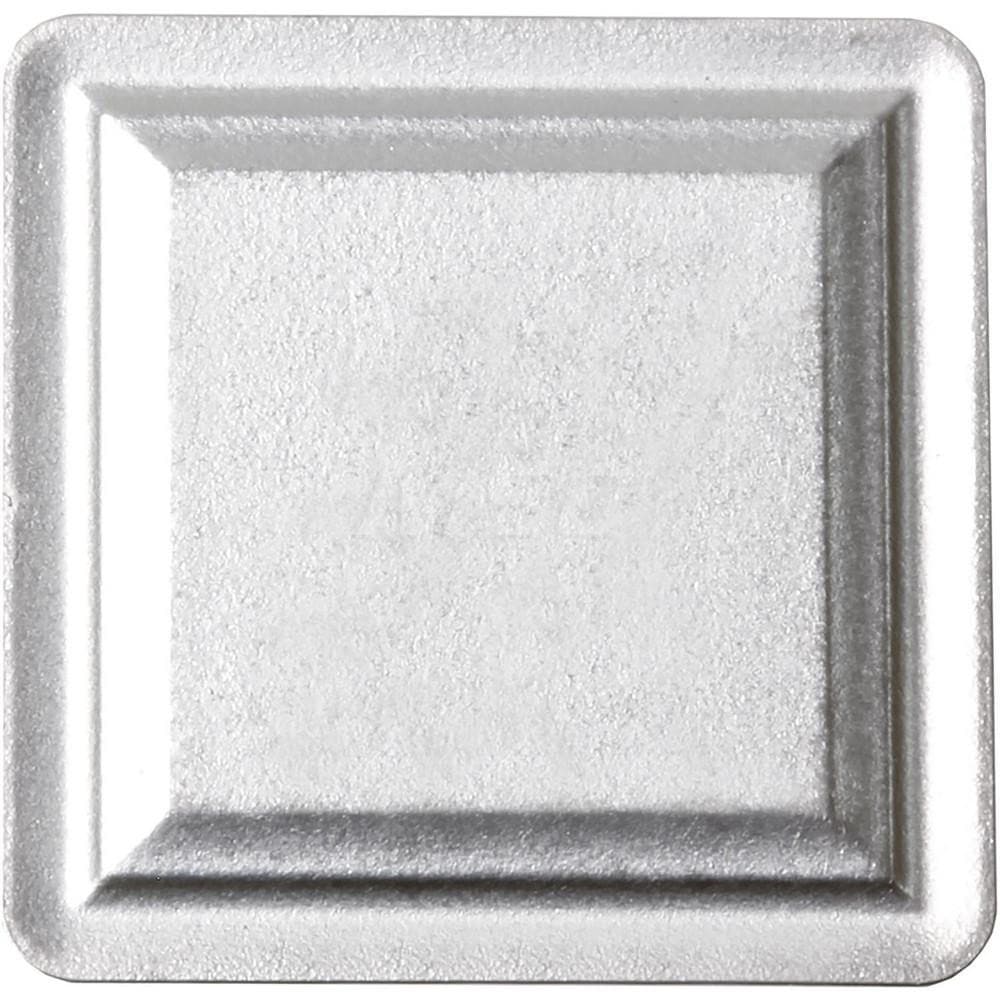

Turning Insert: SPM422 TN610, Cermet
Item #: 18246744
Brand: Kyocera
Model #: TSS05447
Product Specifications
| ANSI Insert Code | SPM422 |
| ISO Insert Code | SPM120308 |
| Relief Angle | 11 |
| Insert Style | SPM |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 90 |
| Manufacturer Grade | TN610 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Cermet |
| Insert Shape | S - Square |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Maximum Depth of Cut (Decimal Inch) | 0.1667 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | SPMN120308 |
| Manufacturers Catalog Number | TSS05447 |
| Material Grade | P01; P10 |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Industry Standard Number | SPM422TN610 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 422 |
| ISO Size Code | 120308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 422 |
| ANSI Insert Code | SPM422 |
| ISO Insert Code | SPM120308 |
| Relief Angle | 11 |
| Insert Style | SPM |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 90 |
| Manufacturer Grade | TN610 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Cermet |
| Insert Shape | S - Square |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Maximum Depth of Cut (Decimal Inch) | 0.1667 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | SPMN120308 |
| Manufacturers Catalog Number | TSS05447 |
| Material Grade | P01; P10 |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Industry Standard Number | SPM422TN610 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 422 |
| ISO Size Code | 120308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 422 |
| MSC Part # | 18246744 |
| Mfr Part # | TSS05447 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
