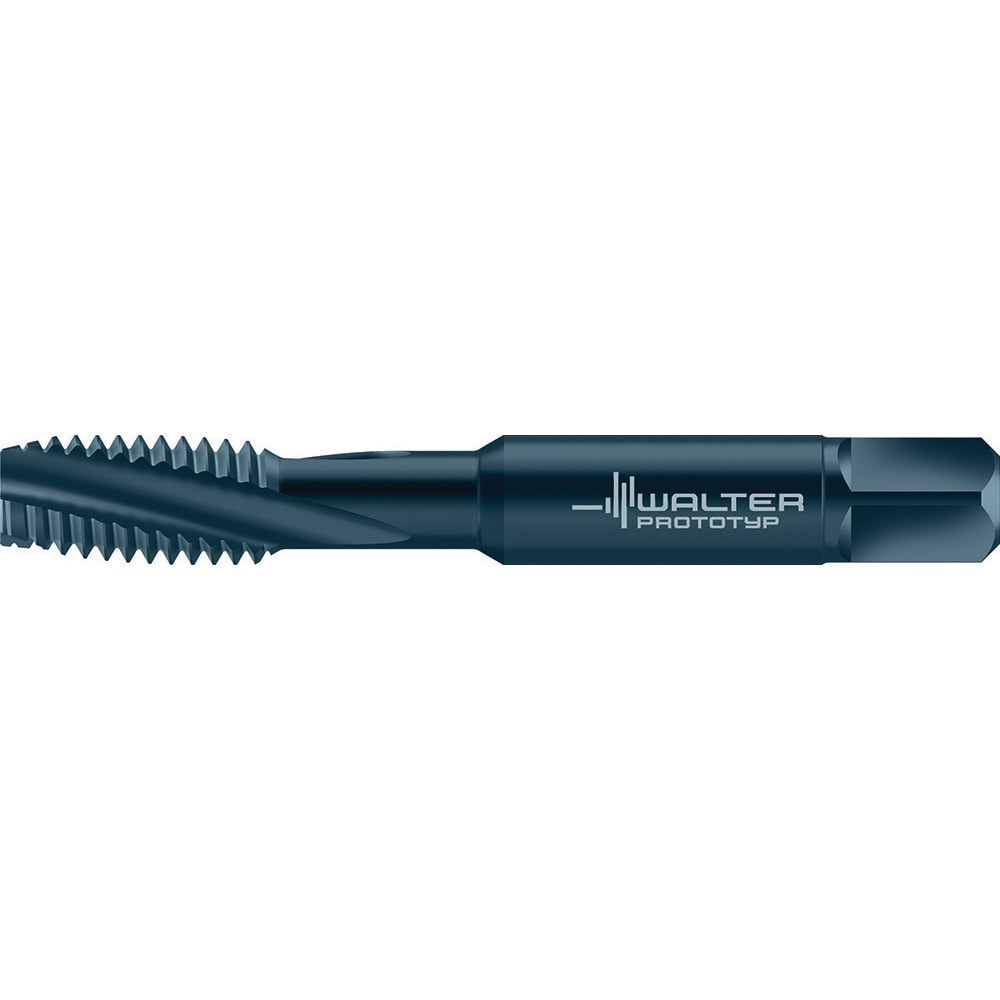

Spiral Flute Tap: #10-32, UNF, 3 Flute, Semi-Bottoming Chamfer, 3B Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 26310219
Brand: Walter-Prototyp
Model #: 8046398
Product Specifications
| Thread Size (Inch) | #10-32 |
| Thread Standard | UNF |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 15.00 |
| Oversize | No |
| Threads per Inch | 32 |
| Thread Length (Decimal Inch) | 0.7087 |
| Thread Length (mm) | 18.00 |
| Overall Length (Decimal Inch) | 2.4571 |
| Overall Length (mm) | 62.4100 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.9200 |
| Tapping Depth (Decimal Inch) | 0.7087 |
| Tapping Depth (mm) | 18.00 |
| Square Length (mm) | 6.35 |
| Square Length (Decimal Inch) | 0.2500 |
| Square Size (Decimal Inch) | 0.1520 |
| Square Size (mm) | 3.86 |
| Flute Style | Spiral |
| Series | A23406S |
| UNSPSC Code | 23241600 |
