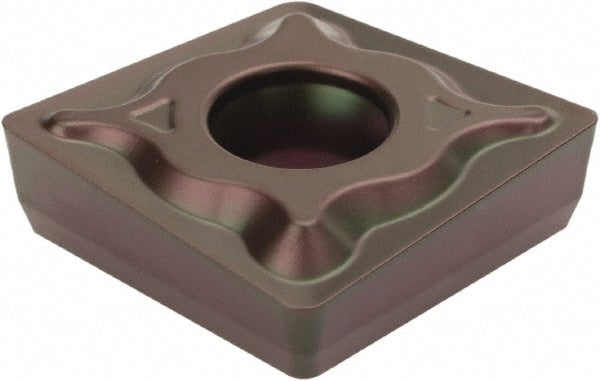

Indexable Drill Insert: XCNT17EN CTC1435, Solid Carbide
Item #: 57562506
Brand: Allied Machine and Engineering
Model #: 11821953
Product Specifications
| Insert Style | XCNT |
| Insert Material | Carbide |
| Manufacturer Grade | CTC1435 |
| Inscribed Circle (Decimal Inch) | 0.2090 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | EN |
| Series | EC 32 |
| Shape | Square |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO 9001:2015 |
| Insert Size | 170508 |
| Width (Decimal Inch - 4 Decimals) | 0.63 |
| Included Angle Degree | 88 |
| Thickness (Decimal Inch - 4 Decimals) | 0.219 |
| Insert Size Code | 17 |
| UNSPSC Code | 23242105 |
| Insert Style | XCNT |
| Insert Material | Carbide |
| Manufacturer Grade | CTC1435 |
| Inscribed Circle (Decimal Inch) | 0.2090 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | EN |
| Series | EC 32 |
| Shape | Square |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO 9001:2015 |
| Insert Size | 170508 |
| Width (Decimal Inch - 4 Decimals) | 0.63 |
| Included Angle Degree | 88 |
| Thickness (Decimal Inch - 4 Decimals) | 0.219 |
| Insert Size Code | 17 |
| UNSPSC Code | 23242105 |
| MSC Part # | 57562506 |
| Mfr Part # | 11821953 |
| Country of Origin Country of Origin is subject to change | Austria |
