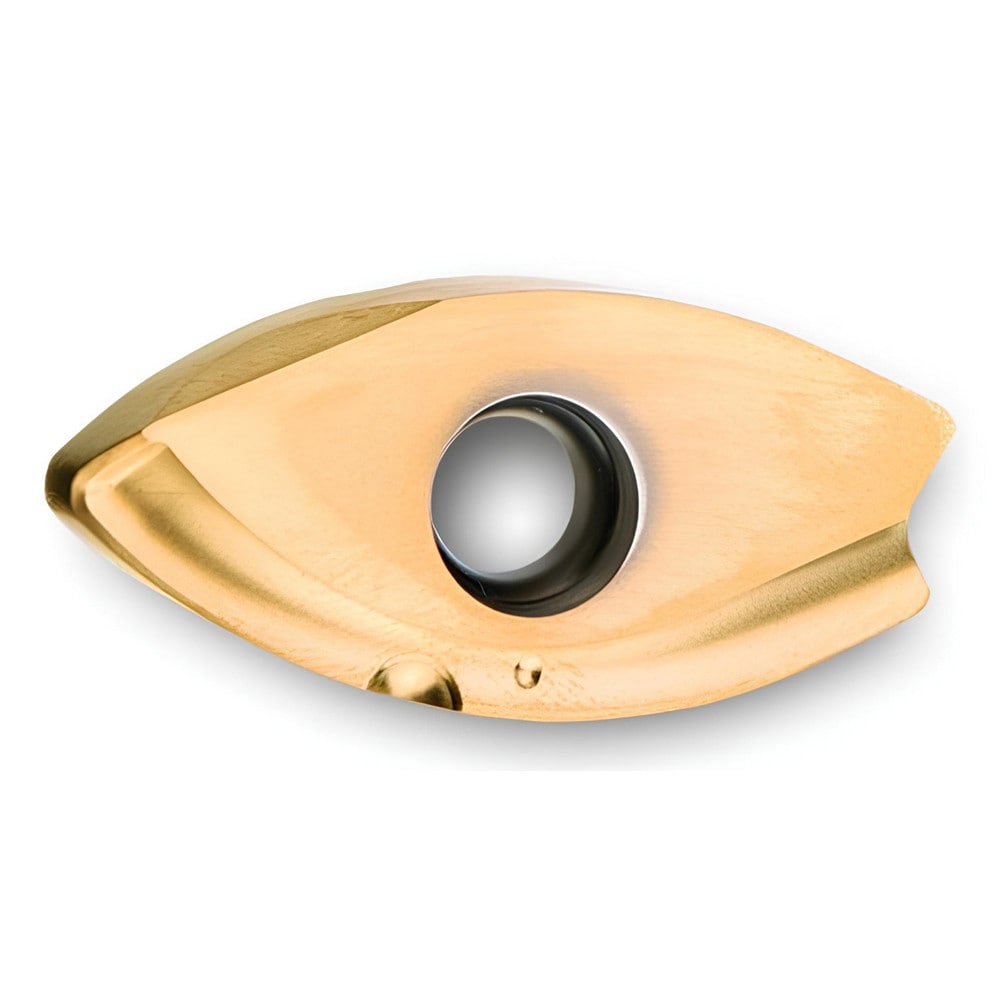

Brand: Ingersoll Cutting Tools / Part #: 6211422
Item #: 67309070
Brand: Ingersoll Cutting Tools
Model #: 6211422
Product Specifications
| Insert Style | NCEU |
| Insert Size Code | 380600 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6537 |
| Inscribed Circle (mm) | 14.00 |
| Corner Radius (Inch) | 3/4 |
| Insert Hand | Right Hand |
| Series | NCEU |
| Coating Process | MTCVD |
| Maximum Depth of Cut (Decimal Inch) | 1.0220 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | NCEU380600R-P |
| Rake Angle | 7.000 |
| Manufacturers Catalog Number | NCEU380600R-P IN6537 |
| Cutter Series Compatibility | 2TW7K |
| Chip Breaker | P |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 25.9600 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.4730 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 1.0220 |
